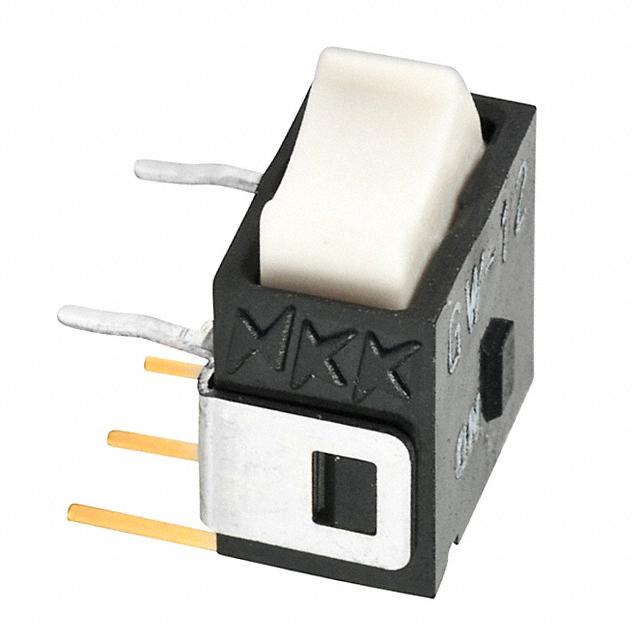

GW12RBH

Active

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Features	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Switch Function	Electrical Life	Voltage Rating - AC	Circuit	Approval Agency	Current Rating (Amps)	Mounting Type	Termination Style	Actuator Type
NKK Switches GW12RBP	28 V	Sealed - Flux Protection	White	-30 ░C	85 °C	No Marking	On-On	50000 Cycles	28 V	SPDT	CSA UL	0.4 VA	Through Hole	PC Pin	Concave (Curved)
NKK Switches GW12RBH	28 V	Sealed - Flux Protection	White	-30 ░C	85 °C	No Marking	On-On	50000 Cycles	28 V	SPDT	CSA UL	0.4 VA	Through Hole Right Angle	PC Pin	Concave (Curved)
NKK Switches GW12RBV	28 V	Sealed - Flux Protection	White	-30 ░C	85 °C	No Marking	On-On	50000 Cycles	28 V	SPDT	CSA UL	0.4 VA	Right Angle Through Hole Vertical	PC Pin	Concave (Curved)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole, Right Angle
