GCLP09F09F
ActiveMH Connectors

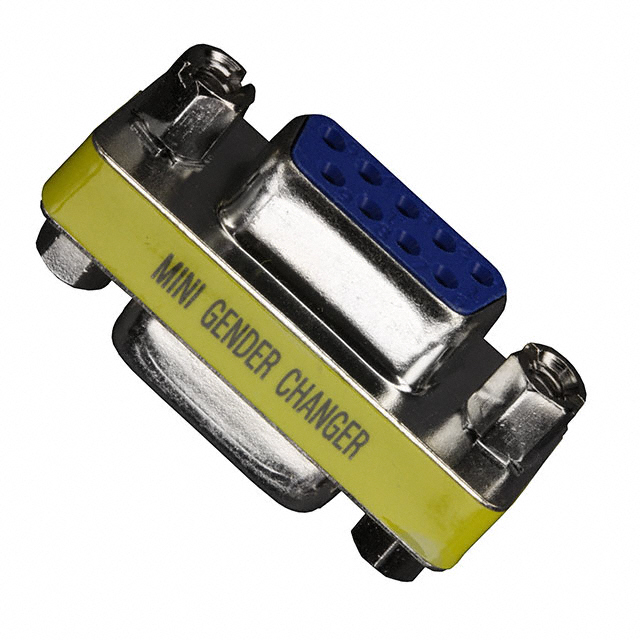

DSUB GENDER CHANGER DB9F DB9F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GCLP09F09F
ActiveMH Connectors
DSUB GENDER CHANGER DB9F DB9F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GCLP09F09F |
|---|---|
| Connector Style | Gender Changer |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Convert From (Adapter End) | D-Sub, 9 Pin Female |
| Current Rating (Amps) | 5 A |
| Housing Color | Yellow |
| Includes | 2 Nuts, 2 Jack Screws, 1 Connector |
| Material Flammability Rating | UL94 V-0 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.45 | |
| 10 | $ 4.95 | |||
| 25 | $ 4.69 | |||
| 40 | $ 4.58 | |||
| 90 | $ 4.36 | |||
| 270 | $ 3.82 | |||
| 450 | $ 3.71 | |||
| 990 | $ 3.16 | |||
| 2430 | $ 2.95 | |||
Description
General part information
GCLP09F Series
Adapter Connector D-Sub, 9 Pin Female To D-Sub, 9 Pin Female Panel Mount
