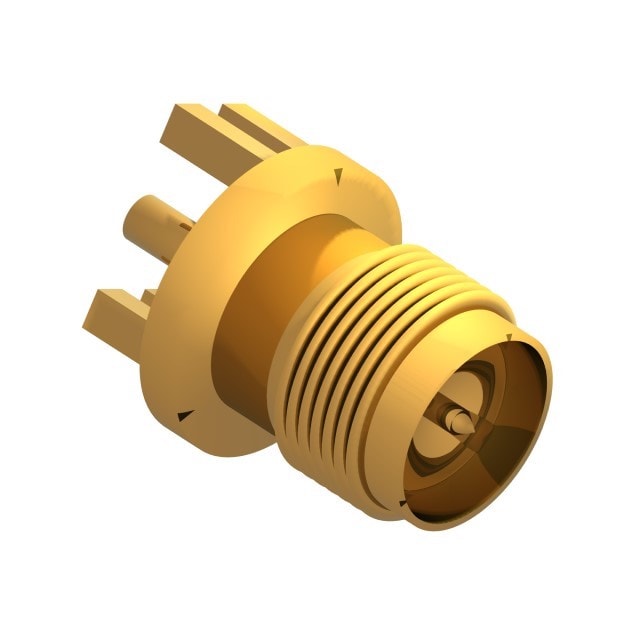

SCNRF-6AAS-RAFE

Active

Suntsu Electronics, Inc

CONN RP-SMA JACK E/L 50 OHMS

Search across all available documentation for this part.

Active

Suntsu Electronics, Inc

CONN RP-SMA JACK E/L 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	SCNRF-6AAS-RAFE

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

CONN RP-SMA JACK E/L 50 OHMS

Part	Frequency - Max [Max]	Center Contact Plating	Center Contact Material	Contact Termination	Body Material	Voltage Rating	Impedance	Connector Type	Number of Ports	Housing Color	Mounting Type	Body Finish	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Connector Style
Suntsu Electronics, Inc SCNRF-6AAS-RAFE	6000 MHz	Gold	Brass	Solder	Brass	335 V	50 Ohms	Female Socket, Jack	1	Gold	Board Edge, End Launch	Gold	Polytetrafluoroethylene (PTFE)	85 °C	-55 °C	Solder	RP-SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
