S2S5A00F

Active

SHARP/Socle Technology

OPTOISOLATOR 3.75KV TRIAC 4MFP

Search across all available documentation for this part.

Active

SHARP/Socle Technology

OPTOISOLATOR 3.75KV TRIAC 4MFP

Technical Specifications

Parameters and characteristics for this part

Specification	S2S5A00F

Approval Agency	CSA, UR
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	3.5 mA
Current - LED Trigger (Ift) (Max) [Max]	10 mA
Current - On State (It (RMS)) (Max)	50 mA
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	Triac

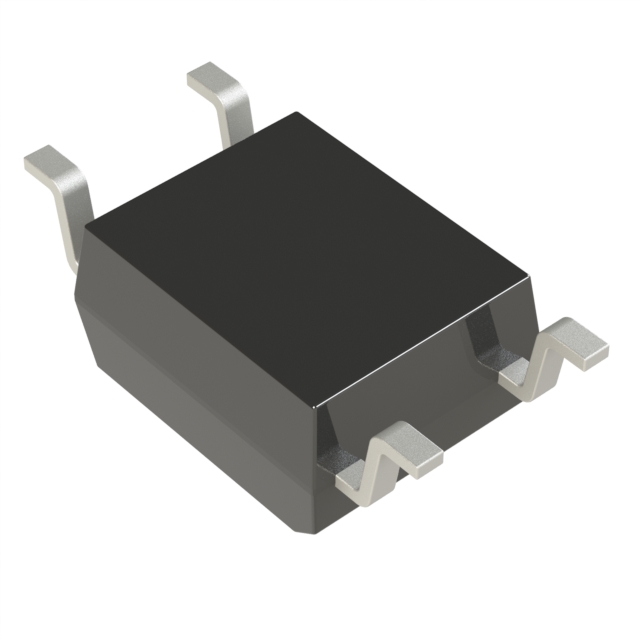

Package / Case	4-SMD, Gull Wing
Static dV/dt (Min) [Min]	500 V/µs
Supplier Device Package	4-Mini-Flat
Turn On Time	100 µs
Voltage - Isolation	3750 Vrms
Voltage - Off State	600 V
Zero Crossing Circuit	False

OPTOISOLATOR 3.75KV TRIAC 4MFP

Part	Current - Hold (Ih)	Mounting Type	Current - On State (It (RMS)) (Max)	Voltage - Isolation	Turn On Time	Supplier Device Package	Voltage - Off State	Output Type	Approval Agency	Zero Crossing Circuit	Current - DC Forward (If) (Max)	Current - LED Trigger (Ift) (Max) [Max]	Static dV/dt (Min) [Min]	Number of Channels	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
SHARP/Socle Technology S2S5A00F	3.5 mA	Surface Mount	50 mA	3750 Vrms	100 µs	4-Mini-Flat	600 V	Triac	CSA, UR		50 mA	10 mA	500 V/µs	1	100 °C	-30 ░C	4-SMD, Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Triac Output 3750Vrms 1 Channel 4-Mini-Flat
