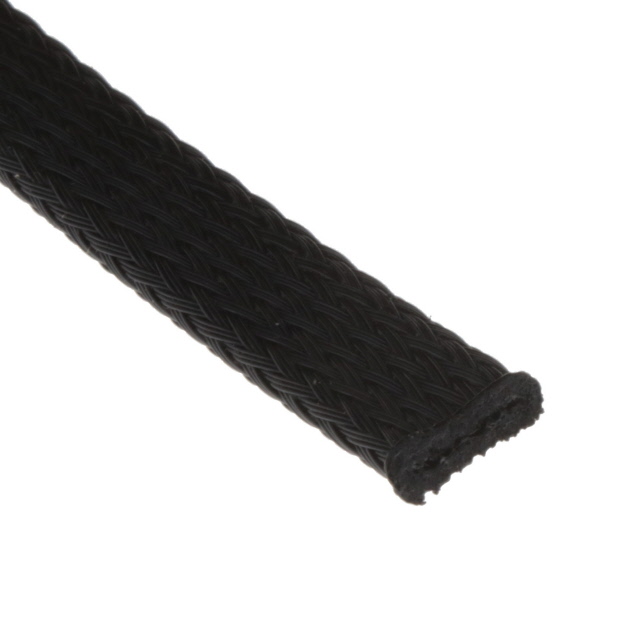

Specification	PTP0.50BK500

Abrasion Protection	Abrasion Resistant, Fray Resistant
Color	Black
Diameter - Inside, Expanded	0.75 in
Diameter - Inside, Non-Expanded	0.25 in
Environment Protection	UV Resistant
Length	500 ft
Material	Polyethylene Terephthalate (PET)
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-70 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	0.024 in

PTP0.50 Series

Part	Material	Color	Length	Wall Thickness	Type Attributes	Type	Operating Temperature (Min)	Operating Temperature (Max)	Diameter - Inside, Expanded	Abrasion Protection	Environment Protection	Diameter - Inside, Non-Expanded
Techflex PTP0.50BK100	Polyethylene Terephthalate (PET)	Black	100 ft	0.024 in	Expandable	Sleeve	-70 °C	125 °C	0.75 in	Abrasion Resistant Fray Resistant	UV Resistant	0.25 in
Techflex PTP0.50BK500	Polyethylene Terephthalate (PET)	Black	500 ft	0.024 in	Expandable	Sleeve	-70 °C	125 °C	0.75 in	Abrasion Resistant Fray Resistant	UV Resistant	0.25 in
