6-102448-3

Active
TE Connectivity AMP Connectors

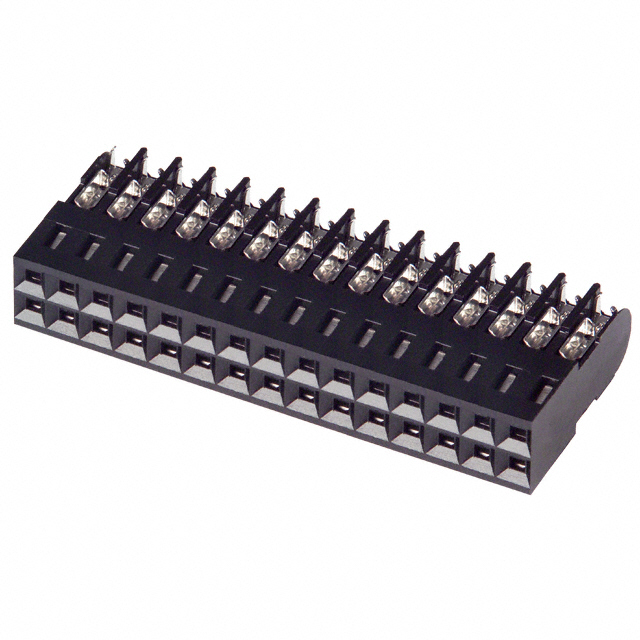

CONN RECEPT 30POS .100 IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
6-102448-3 - 1-102xxx-3, 6-102xxx-3

6-102448-3

Active
TE Connectivity AMP Connectors

CONN RECEPT 30POS .100 IDC GOLD

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification6-102448-3102448 Series
Cable TerminationIDCIDC
ColorBlackBlack
Connector TypeReceptacleReceptacle
Contact FinishGoldGold
Contact Finish Thickness0.76 Ám0.76 Ám
Contact Finish Thickness30 Áin30 Áin
Contact TypeFemale SocketFemale Socket
FeaturesClosed EndClosed End
Mounting TypeFree Hanging (In-Line)Free Hanging (In-Line)
Number of Positions3010 - 50
Number of Rows22
Pitch [x]2.54 mm2.54 mm
Pitch [x]0.1 in0.1 in
Row Spacing2.54 mm2.54 mm
Row Spacing [x]0.1 in0.1 in
Wire Gauge [Max]22 AWG22 AWG
Wire Gauge [Min]20 AWG20 AWG
Wire TypeDiscrete or Ribbon CableDiscrete or Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 160$ 18.69

102448 Series

CONN RCPT 14P IDC 20-22AWG GOLD

PartPitch [x]Pitch [x]Cable TerminationNumber of RowsRow Spacing [x]Row SpacingMounting TypeWire Gauge [Min]Wire Gauge [Max]Number of PositionsContact FinishConnector TypeFeaturesContact TypeContact Finish ThicknessContact Finish ThicknessWire TypeColor
TE Connectivity AMP Connectors
102448-5
2.54 mm
0.1 in
IDC
2
0.1 in
2.54 mm
Free Hanging (In-Line)
20 AWG
22 AWG
14
Gold
Receptacle
Closed End
Female Socket
0.76 Ám
30 Áin
Discrete or Ribbon Cable
Black
TE Connectivity AMP Connectors
6-102448-3
2.54 mm
0.1 in
IDC
2
0.1 in
2.54 mm
Free Hanging (In-Line)
20 AWG
22 AWG
30
Gold
Receptacle
Closed End
Female Socket
0.76 Ám
30 Áin
Discrete or Ribbon Cable
Black
TE Connectivity AMP Connectors
5-102448-7
2.54 mm
0.1 in
IDC
2
0.1 in
2.54 mm
Free Hanging (In-Line)
20 AWG
22 AWG
18
Gold
Receptacle
Closed End
Female Socket
0.76 Ám
30 Áin
Discrete or Ribbon Cable
Black
TE Connectivity AMP Connectors
5-102448-8
2.54 mm
0.1 in
IDC
2
0.1 in
2.54 mm
Free Hanging (In-Line)
20 AWG
22 AWG
20
Gold
Receptacle
Closed End
Female Socket
0.76 Ám
30 Áin
Discrete or Ribbon Cable
Black
TE Connectivity AMP Connectors
2-102448-3
2.54 mm
0.1 in
IDC
2
0.1 in
2.54 mm
Free Hanging (In-Line)
20 AWG
22 AWG
50
Gold
Receptacle
Closed End
Female Socket
0.76 Ám
30 Áin
Discrete or Ribbon Cable
Black
TE Connectivity AMP Connectors
1-102448-5
2.54 mm
0.1 in
IDC
2
0.1 in
2.54 mm
Free Hanging (In-Line)
20 AWG
22 AWG
34
Gold
Receptacle
Closed End
Female Socket
0.76 Ám
30 Áin
Discrete or Ribbon Cable
Black
TE Connectivity AMP Connectors
1-102448-8
2.54 mm
0.1 in
IDC
2
0.1 in
2.54 mm
Free Hanging (In-Line)
20 AWG
22 AWG
40
Gold
Receptacle
Closed End
Female Socket
0.76 Ám
30 Áin
Discrete or Ribbon Cable
Black
TE Connectivity AMP Connectors
1-102448-1
2.54 mm
0.1 in
IDC
2
0.1 in
2.54 mm
Free Hanging (In-Line)
20 AWG
22 AWG
26
Gold
Receptacle
Closed End
Female Socket
0.76 Ám
30 Áin
Discrete or Ribbon Cable
Black
TE Connectivity AMP Connectors
5-102448-3
2.54 mm
0.1 in
IDC
2
0.1 in
2.54 mm
Free Hanging (In-Line)
20 AWG
22 AWG
10
Gold
Receptacle
Closed End
Female Socket
0.76 Ám
30 Áin
Discrete or Ribbon Cable
Black
TE Connectivity AMP Connectors
6-102448-1
2.54 mm
0.1 in
IDC
2
0.1 in
2.54 mm
Free Hanging (In-Line)
20 AWG
22 AWG
26
Gold
Receptacle
Closed End
Female Socket
0.76 Ám
30 Áin
Discrete or Ribbon Cable
Black

Description

General part information

102448 Series

30 Position Rectangular Receptacle Connector IDC Gold 20-22 AWG
