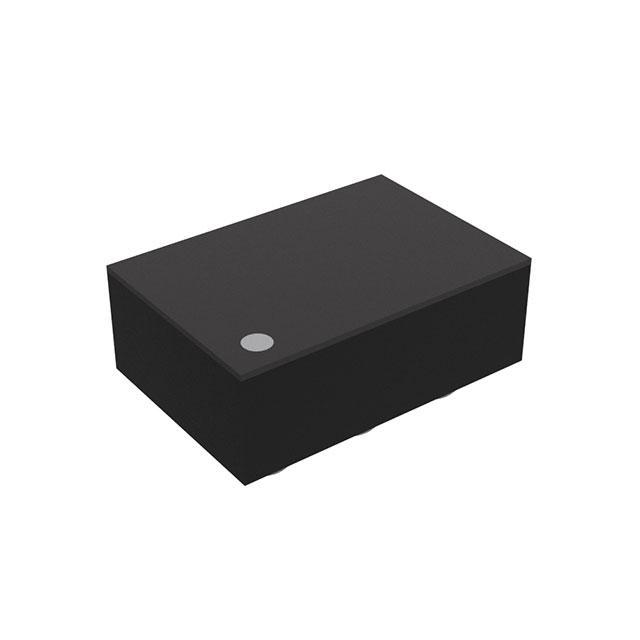

RP509Z131B-E2-F

Active

Nisshinbo Micro Devices Inc

IC REG BUCK 1.3V 1A 6WLCSP

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC REG BUCK 1.3V 1A 6WLCSP

Technical Specifications

Parameters and characteristics for this part

IC REG BUCK 1.3V 1A 6WLCSP

Part	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Output Configuration	Mounting Type	Function	Topology	Voltage - Output (Min/Fixed)	Output Type	Current - Output	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Synchronous Rectifier	Frequency - Switching
Nisshinbo Micro Devices Inc RP509Z131B-E2-F	5.5 V	2.3 V	Positive	Surface Mount	Step-Down	Buck	1.3 V	1.81 mOhm	1 A	6-WFBGA, WLCSP	85 °C	-40 °C	1		6 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Fixed 1.3V 1 Output 1A 6-WFBGA, WLCSP
