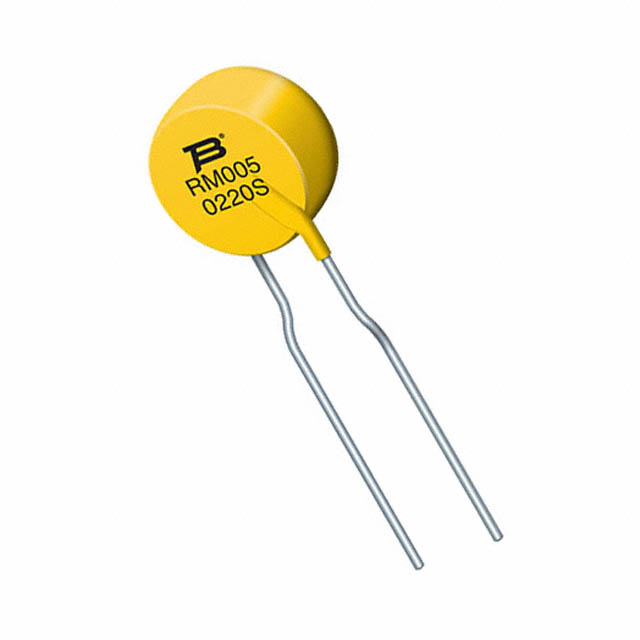

MF-RM005/240-2

Active

Bourns Inc.

PTC RESETTABLE FUSE 0.05A(HOLD) 0.12A(TRIP) 240VAC 1A 0.9W 10S 18.5OHM RADIAL 8.3 X 3.8MM T/R

Search across all available documentation for this part.

Active

Bourns Inc.

PTC RESETTABLE FUSE 0.05A(HOLD) 0.12A(TRIP) 240VAC 1A 0.9W 10S 18.5OHM RADIAL 8.3 X 3.8MM T/R

Technical Specifications

Parameters and characteristics for this part

Specification	MF-RM005/240-2

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	50 mA
Current - Max [Max]	1 A
Current - Trip (It)	120 mA
Height - Seated (Max) [Max]	12.9 mm
Height - Seated (Max) [Max]	0.508 in
Lead Spacing	2.9 mm
Lead Spacing	0.114 "
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	18.5 Ohms
Resistance - Post Trip (R1) (Max) [Max]	65 Ohms
Size / Dimension [diameter]	8.3 mm
Size / Dimension [diameter]	0.327 in
Size / Dimension [z]	3.8 mm
Size / Dimension [z]	0.15 "
Type	Polymeric
Voltage - Max	265 V
Voltage - Max [Max]	240 V

Part	Current - Hold (Ih) (Max) [Max]	Package / Case	Resistance - Initial (Ri) (Min) [Min]	Mounting Type	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Resistance - Post Trip (R1) (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Approval Agency	Current - Trip (It)	Time to Trip	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Max [Max]	Voltage - Max	Current - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]
Bourns Inc. MF-RM033/240-2	330 mA	Disc Radial	770 mOhms	Through Hole	Polymeric	20 mm	0.787 "	2.9 mm	0.114 "	2.6 Ohms	0.449 "	11.4 mm	3.8 mm	0.15 "	cURus TUV	740 mA	21 s	85 °C	-20 C	240 V	265 V
Bourns Inc. MF-RM055/240-0	550 mA	Disc Radial	450 mOhms	Through Hole	Polymeric	22.4 mm	0.882 "	2.9 mm	0.114 "	1.45 Ohms	0.551 in	14 mm	4.1 mm	0.161 in	cURus TUV	1.25 A	26 s	85 °C	-20 C	240 V	265 V	7 A
Bourns Inc. MF-RM033/240-0	330 mA	Disc Radial	770 mOhms	Through Hole	Polymeric	20 mm	0.787 "	2.9 mm	0.114 "	2.6 Ohms	0.449 "	11.4 mm	3.8 mm	0.15 "	cURus TUV	740 mA	21 s	85 °C	-20 C	240 V	265 V
Bourns Inc. MF-RM005/240-2	50 mA	Disc Radial	18.5 Ohms	Through Hole	Polymeric			2.9 mm	0.114 "	65 Ohms					cURus TUV	120 mA		85 °C	-20 C	240 V	265 V	1 A	12.9 mm	0.508 in	3.8 mm	0.15 "	8.3 mm	0.327 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 240V (265V Int) 50 mA Ih Through Hole Radial, Disc
