ZXBM5409Q-N-U

Active

Diodes Inc

BRUSHED DC MOTOR DRIVER WITH SERVO CONTROL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

ZXBM5409Q-N-U

Active

Diodes Inc

BRUSHED DC MOTOR DRIVER WITH SERVO CONTROL

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZXBM5409Q-N-U

Current - Output	800 mA
Function	Driver - Fully Integrated, Control and Power Stage
Grade	Automotive
Motor Type - AC, DC	DC Servo, Brushed DC
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (2)
Package / Case	0.3 in

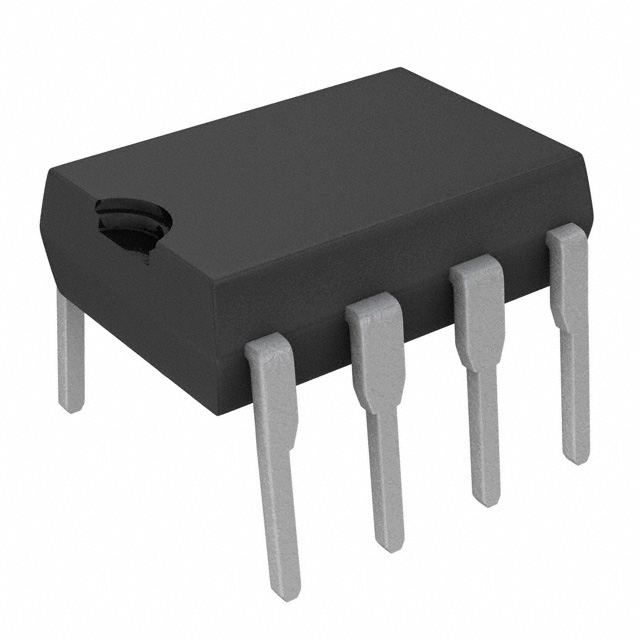

Package / Case	8-DIP
Package / Case	7.62 mm
Qualification	AEC-Q100
Supplier Device Package	8-PDIP
Technology	Power MOSFET
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	8 V

ZXBM5409Q Series

BRUSHED DC MOTOR DRIVER WITH SERVO CONTROL

Part	Grade	Mounting Type	Technology	Current - Output	Function	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Output Configuration	Package / Case	Package / Case	Package / Case	Qualification	Motor Type - AC, DC	Voltage - Supply [Min]	Voltage - Supply [Max]
Diodes Inc ZXBM5409Q-N-U	Automotive	Through Hole	Power MOSFET	800 mA	Driver - Fully Integrated Control and Power Stage	-40 °C	125 °C	8-PDIP	Half Bridge (2)	0.3 in	8-DIP	7.62 mm	AEC-Q100	Brushed DC DC Servo	8 V	18 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.87
		10	$ 1.21
		25	$ 1.04
		100	$ 0.84
		250	$ 0.75

Description

General part information

ZXBM5409Q Series

The ZXBM5409Q is a protected H-Bridge Driver designed specifically for automotive manual headlight beam control and industrial servo control applications with DC-brush motor loads. The integrated full-bridge driver output stage is composed of high-current, low-RDSON H-bridge MOSFETs to maximize efficiency.
