CQT1-12.000

Active

Chip Quik Inc.

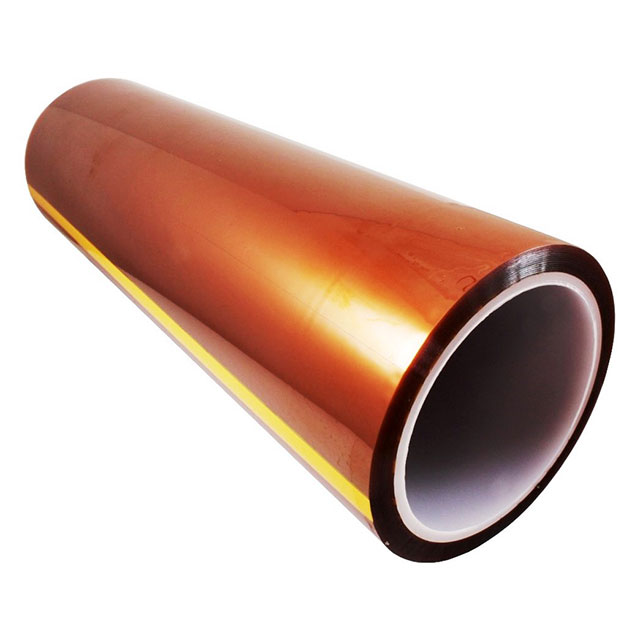

TAPE FILM AMBER 12"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CQT1-12.000

Active

Chip Quik Inc.

TAPE FILM AMBER 12"X36YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 296.14
		10	$ 276.39
		25	$ 262.57

Description

General part information

CQT1 Series

Film Tape Silicone Adhesive Amber 12.00" (304.80mm) X 108' (32.9m) 36 yds

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CQT1-12.000	CQT1 Series

Adhesive	Silicone	Silicone
Backing, Carrier	Polyimide	Polyimide
Color	Amber	Amber
Length	36 yd	36 yd
Length	32.9 m	32.9 m
Length	108 ft	108 ft
Shelf Life	36 Months	36 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Tape Type	Film	Film
Temperature Range [Max]	260 °C	260 °C
Temperature Range [Min]	-73 °C, -100 °F	-100 - -73 °C
Thickness	2 mils	2 mils
Thickness	0.002 in	0.002 in
Thickness	0.051 mm	0.051 mm
Thickness - Adhesive	1 mils	1 mils
Thickness - Adhesive	0.025 mm	0.025 mm
Thickness - Adhesive	0.001 in	0.001 in
Thickness - Backing, Carrier	1 mils	1 mils
Thickness - Backing, Carrier	0.025 mm	0.025 mm
Thickness - Backing, Carrier	0.001 "	0.001 "
Width	-	0.25 - 0.5 in
Width	-	0.25 - 1.25 in
Width	-	6.35 - 31.75 mm
Width	-	2 "
Width	-	50.8 mm
Width [x]	304.8 mm	25.4 - 304.8 mm
Width [x]	12 in	1 - 12 in

CQT1 Series

TAPE FILM AMBER 1"X36YDS

Part	Shelf Life Start	Shelf Life	Adhesive	Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [x]	Width [x]	Thickness	Thickness	Thickness	Temperature Range [Min]	Temperature Range [Max]	Color	Tape Type	Length	Length	Length	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width	Width	Width	Width [y]	Width [y]
Chip Quik Inc. CQT1-1.000	Date of Manufacture	36 Months	Silicone	Polyimide	1 mils	0.025 mm	0.001 in	25.4 mm	1 in	2 mils	0.002 in	0.051 mm	-100 °F, -73 °C	260 °C	Amber	Film	36 yd	32.9 m	108 ft	1 mils	0.025 mm	0.001 "
Chip Quik Inc. CQT1-0.250	Date of Manufacture	36 Months	Silicone	Polyimide	1 mils	0.025 mm	0.001 in			2 mils	0.002 in	0.051 mm	-100 °F, -73 °C	260 °C	Amber	Film	36 yd	32.9 m	108 ft	1 mils	0.025 mm	0.001 "	0.25 in	0.25 in	6.35 mm
Chip Quik Inc. CQT1-0.500	Date of Manufacture	36 Months	Silicone	Polyimide	1 mils	0.025 mm	0.001 in			2 mils	0.002 in	0.051 mm	-100 °F, -73 °C	260 °C	Amber	Film	36 yd	32.9 m	108 ft	1 mils	0.025 mm	0.001 "	0.5 in	0.5 in	12.7 mm
Chip Quik Inc. CQT1-2.000	Date of Manufacture	36 Months	Silicone	Polyimide	1 mils	0.025 mm	0.001 in			2 mils	0.002 in	0.051 mm	-100 °F, -73 °C	260 °C	Amber	Film	36 yd	32.9 m	108 ft	1 mils	0.025 mm	0.001 "				2 "	50.8 mm
Chip Quik Inc. CQT1-12.000	Date of Manufacture	36 Months	Silicone	Polyimide	1 mils	0.025 mm	0.001 in	304.8 mm	12 in	2 mils	0.002 in	0.051 mm	-100 °F, -73 °C	260 °C	Amber	Film	36 yd	32.9 m	108 ft	1 mils	0.025 mm	0.001 "
Chip Quik Inc. CQT1-1.250	Date of Manufacture	36 Months	Silicone	Polyimide	1 mils	0.025 mm	0.001 in			2 mils	0.002 in	0.051 mm	-100 °F, -73 °C	260 °C	Amber	Film	36 yd	32.9 m	108 ft	1 mils	0.025 mm	0.001 "		1.25 in	31.75 mm
