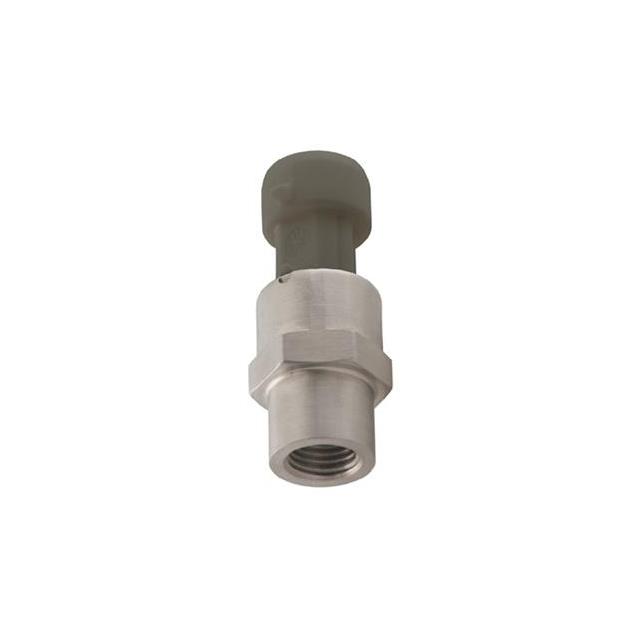

P528-500-A-C3A

Obsolete

Sensata Technologies

SENSOR PRES ABS 0-500PSI 7/16"UN

Search across all available documentation for this part.

Obsolete

Sensata Technologies

SENSOR PRES ABS 0-500PSI 7/16"UN

Technical Specifications

Parameters and characteristics for this part

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure	Operating Pressure	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Output [Min]	Output [Max]	Port Style	Features	Applications	Package / Case	Output Type	Port Size	Port Size	Port Size	Pressure Type
Sensata Technologies P528-500-A-C3A	1000 PSI	6894.76 kPa	125 °C	-40 °C	3447.38 kPa	500 PSI	Connector	4.75 V	5.5 V	0.5 V	4.5 V	Threaded	Temperature Compensated	Industrial Automation	Cylinder	Analog Voltage
Sensata Technologies P528-500-S-F2A	1000 PSI	6894.76 kPa	125 °C	-40 °C	3447.38 kPa	500 PSI	Connector	4.75 V	5.5 V	0.5 V	4.5 V	Threaded	Temperature Compensated	Industrial Automation	Cylinder	Analog Voltage	Female NPT	0.25 "	6.35 mm	Sealed Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SENSOR PRES ABS 0-500PSI 7/16"UN

Technical documentation and resources
