EN3P11FRAPCBN

Active

Switchcraft Inc.

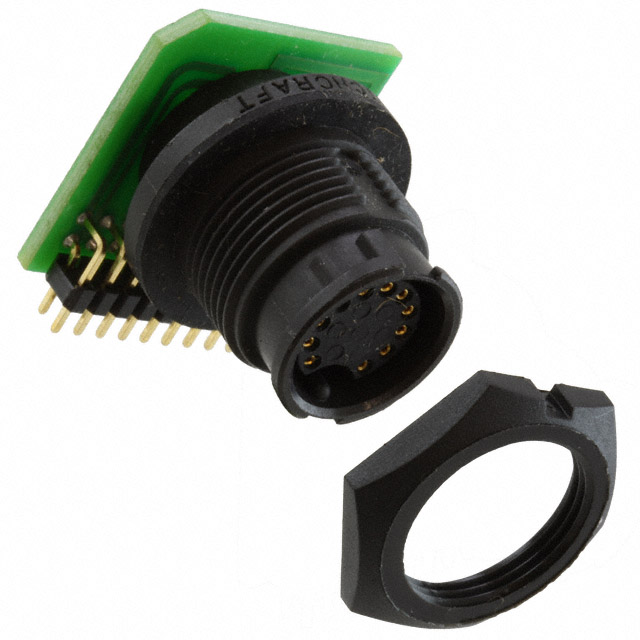

CONN RCPT FMALE 11POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P11FRAPCBN

Active

Switchcraft Inc.

CONN RCPT FMALE 11POS SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P11FRAPCBN	EN3P11 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	2 A	2 - 3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	11	11
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

EN3P11 Series

STANDARD CIRCULAR CONNECTOR 11P MALE PANEL

Part	Fastening Type	Shielding	Number of Positions	Contact Material	Contact Finish - Mating	Primary Material	Insert Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Color	Connector Type	Orientation	Ingress Protection	Material Flammability Rating	Mounting Feature	Applications	Termination	Mounting Type
Switchcraft Inc. EN3P11M26SX	Bayonet Lock	Unshielded	11	Copper Alloy	Gold	Plastic	Elastomer	3 A	65 °C	-40 °C	250 VAC	Black	Male Pins, Receptacle	Keyed	IP66/IP68	UL94 V-0	Bulkhead - Front Side Nut	General Purpose, Instrumentation, Marine, Medical
Switchcraft Inc. EN3P11MRAPCBN	Bayonet Lock	Unshielded	11	Copper Alloy	Gold	Plastic	Elastomer	2 A	65 °C	-40 °C	250 VAC	Black	Male Pins, Receptacle	Keyed	IP66/IP68	UL94 V-0	Bulkhead - Front Side Nut	General Purpose, Instrumentation, Marine, Medical	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P11FRAPCBN	Bayonet Lock	Unshielded	11	Copper Alloy	Gold	Plastic	Elastomer	2 A	65 °C	-40 °C	250 VAC	Black	Receptacle, Female Sockets	Keyed	IP66/IP68	UL94 V-0	Bulkhead - Front Side Nut	General Purpose, Instrumentation, Marine, Medical	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P11FRAPCBW	Bayonet Lock	Unshielded	11	Copper Alloy	Gold	Plastic	Elastomer	2 A	65 °C	-40 °C	250 VAC	Black	Receptacle, Female Sockets	Keyed	IP66/IP68	UL94 V-0	Bulkhead - Front Side Nut	General Purpose, Instrumentation, Marine, Medical	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P11MRAPCBW	Bayonet Lock	Unshielded	11	Copper Alloy	Gold	Plastic	Elastomer	2 A	65 °C	-40 °C	250 VAC	Black	Male Pins, Receptacle	Keyed	IP66/IP68	UL94 V-0	Bulkhead - Front Side Nut	General Purpose, Instrumentation, Marine, Medical	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 18.90

Description

General part information

EN3P11 Series

11 Position Circular Connector Receptacle, Female Sockets Circuit Board, Solder
