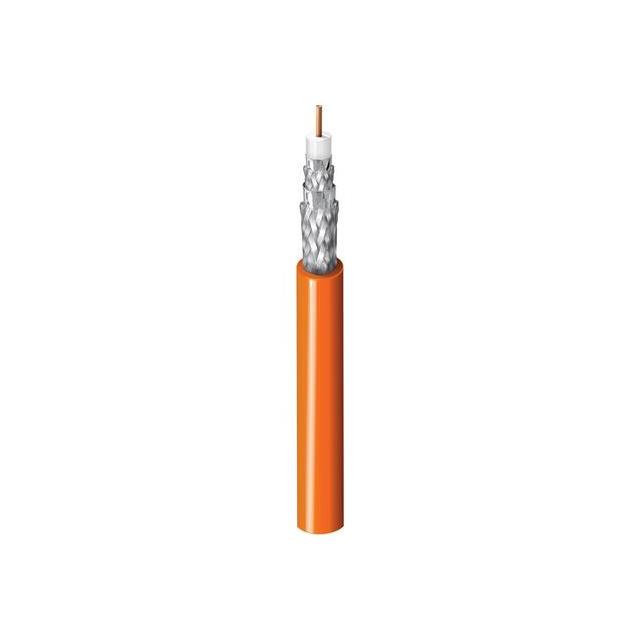

COAX 12AWG 50 OHM

Search across all available documentation for this part.

Active

Belden Inc.

COAX 12AWG 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	89880 0031640

Cable Type	Coaxial - Plenum
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.245 in
Dielectric Diameter [diameter]	6.22 mm
Dielectric Material	Foam Fluorinated Ethylene Propylene (FFEP)
Features	Quad Shield
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	9.53 mm
Jacket (Insulation) Diameter [diameter]	0.375 in
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket Color	Orange
Length	1640 ft
Length	500 m
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-25 °C
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	78
Wire Gauge	12 AWG

Part	VoP, Velocity of Propagation	Features	Conductor Material	Shield Type	Conductor Strand	Jacket Color	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Shield Material	Jacket (Insulation) Material	Cable Type	Wire Gauge	Dielectric Material
Belden Inc. 89880 0031000	78	Quad Shield	Copper Bare	Braid Foil	Solid	Orange	0.245 in	6.22 mm	90 % 100 %	9.53 mm	0.375 in	50 Ohms	150 °C	-25 °C	304.8 m	1000 ft	Aluminum Copper Tinned	Polyvinylidene Fluoride (PVDF)	Coaxial - Plenum	12 AWG	Foam Fluorinated Ethylene Propylene (FFEP)
Belden Inc. 89880 0031640	78	Quad Shield	Copper Bare	Braid Foil	Solid	Orange	0.245 in	6.22 mm	90 % 100 %	9.53 mm	0.375 in	50 Ohms	150 °C	-25 °C	500 m	1640 ft	Aluminum Copper Tinned	Polyvinylidene Fluoride (PVDF)	Coaxial - Plenum	12 AWG	Foam Fluorinated Ethylene Propylene (FFEP)
