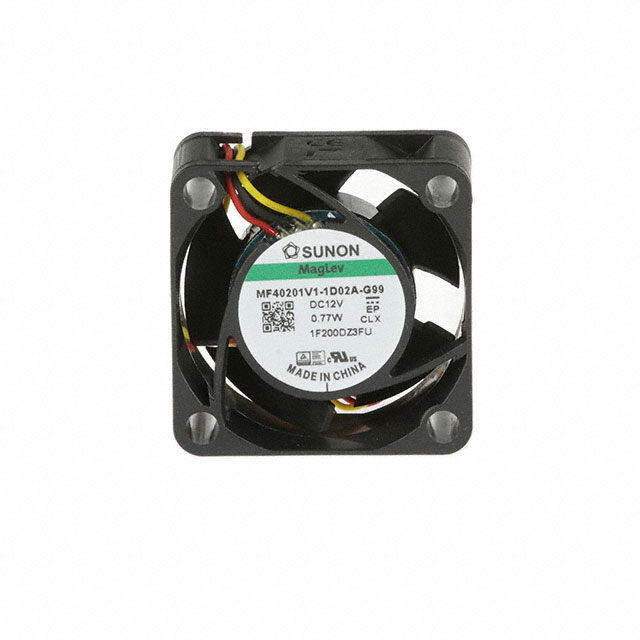

4508HQ/MF40201V1-1D02A-G99

Active

Sunon Fans

FAN AXIAL 40X20MM VAPO 12VDC

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 40X20MM VAPO 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	4508HQ/MF40201V1-1D02A-G99

Air Flow	0.23 mł/min
Air Flow	8.2 CFM
Approval Agency	cURus, TUV
Current Rating (Amps)	58 mA
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	27.4 dB(A)
Power (Watts)	700 mW
RPM	7000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.22 in H2O
Static Pressure	54.8 Pa
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	29.03 g
Weight	0.064 lb
Width [y]	20 mm

FAN AXIAL 40X20MM VAPO 12VDC

Part	Features	Width [y]	Approval Agency	Current Rating (Amps)	Weight	Weight	Power (Watts)	RPM	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Noise	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Air Flow	Air Flow	Fan Type	Lifetime @ Temp.	Voltage - Rated	Static Pressure	Static Pressure
Sunon Fans 4508HQ/MF40201V1-1D02A-G99	Auto Restart, Speed Sensor (Tach)	20 mm	cURus, TUV	58 mA	29.03 g	0.064 lb	700 mW	7000 RPM	13.8 VDC	6 VDC	Polybutylene Terephthalate (PBT)	27.4 dB(A)	40 mm	Square	40 mm	0.23 mł/min	8.2 CFM	Tubeaxial	60000 Hrs	12 VDC	0.22 in H2O	54.8 Pa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.09

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Vapo-Bearing™ 8.2 CFM (0.230mł/min)
