SBCP-47HY331B

Active

KEMET

INDUCTOR, 330UH, 10%, 0.27A, RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SBCP-47HY331B Spec

SBCP-47HY331B

Active

KEMET

INDUCTOR, 330UH, 10%, 0.27A, RADIAL

Deep-Dive with AI

DocumentsDatasheet SBCP-47HY331B Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SBCP-47HY331B

Current - Saturation (Isat)	270 mA
Current Rating (Amps)	270 mA
DC Resistance (DCR) [Max]	1.8 Ohm
Height - Seated (Max) [Max] [z]	0.295 in
Height - Seated (Max) [Max] [z]	7.5 mm
Inductance	330 µH
Inductance Frequency - Test	10 kHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Package / Case	Radial, Vertical Cylinder (Open)
Shielding	Unshielded
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Tolerance	10 %
Type	Wirewound, Drum Core

SBCP-47HY Series

Part	Tolerance	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Mounting Type	Package / Case	Material - Core	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Current Rating (Amps)
KEMET SBCP-47HY681B	10 %	3.5 Ohm	10 kHz	Through Hole	Radial Vertical Cylinder (Open)	Ferrite	680 µH	-20 C	105 ░C	Unshielded	0.335 in	8.5 mm	190 mA	Drum Core Wirewound	5 mm	0.197 "
KEMET SBCP-47HY470B	10 %	267 mOhm	10 kHz	Through Hole	Radial Vertical Cylinder (Open)	Ferrite	47 µH	-20 C	105 ░C	Unshielded	0.335 in	8.5 mm	730 mA	Drum Core Wirewound	5 mm	0.197 "	0.73 A
KEMET SBCP-47HY100B	20 %	67 mOhm	10 kHz	Through Hole	Radial Vertical Cylinder (Open)	Ferrite	10 µH	-20 C	105 ░C	Unshielded	0.295 in	7.5 mm	1.6 A	Drum Core Wirewound	5 mm	0.197 "	1.6 A
KEMET SBCP-47HY4R7B	20 %	43 mOhm	10 kHz	Through Hole	Radial Vertical Cylinder (Open)	Ferrite	4.7 ÁH	-20 C	105 ░C	Unshielded	0.335 in	8.5 mm	2.3 A	Drum Core Wirewound	5 mm	0.197 "	2.1 A
KEMET SBCP-47HY150B	20 %	87 mOhm	10 kHz	Through Hole	Radial Vertical Cylinder (Open)	Ferrite	15 µH	-20 C	105 ░C	Unshielded	0.335 in	8.5 mm	1.26 A	Drum Core Wirewound	5 mm	0.197 "	1.25 A
KEMET SBCP-47HY331B	10 %	1.8 Ohm	10 kHz	Through Hole	Radial Vertical Cylinder (Open)	Ferrite	330 µH	-20 C	105 ░C	Unshielded	0.295 in	7.5 mm	270 mA	Drum Core Wirewound	5 mm	0.197 "	270 mA
KEMET SBCP-47HY2R7B	20 %	32 mOhm	10 kHz	Through Hole	Radial Vertical Cylinder (Open)	Ferrite	2.7 µH	-20 C	105 ░C	Unshielded	0.335 in	8.5 mm	2.92 A	Drum Core Wirewound	5 mm	0.197 "	2.45 A
KEMET SBCP-47HY391B	10 %	2 Ohm	10 kHz	Through Hole	Radial Vertical Cylinder (Open)	Ferrite	390 µH	-20 C	105 ░C	Unshielded	0.335 in	8.5 mm	250 mA	Drum Core Wirewound	5 mm	0.197 "	0.25 A
KEMET SBCP-47HY152B	10 %	8 Ohm	10 kHz	Through Hole	Radial Vertical Cylinder (Open)	Ferrite	1.5 mH	-20 C	105 ░C	Unshielded	0.335 in	8.5 mm	130 mA	Drum Core Wirewound	5 mm	0.197 "	130 mA
KEMET SBCP-47HY1R5B	20 %	24 mOhm	10 kHz	Through Hole	Radial Vertical Cylinder (Open)	Ferrite	1.5 µH	-20 C	105 ░C	Unshielded	0.335 in	8.5 mm	3.67 A	Drum Core Wirewound	5 mm	0.197 "	2.85 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.66
		10	$ 0.56
		25	$ 0.51
		50	$ 0.48
		100	$ 0.40
		300	$ 0.37
		600	$ 0.36
Newark	Each	10	$ 0.76
		25	$ 0.70
		50	$ 0.63
		100	$ 0.56
		500	$ 0.49
		1000	$ 0.42
		2500	$ 0.39

Description

General part information

SBCP-47HY Series

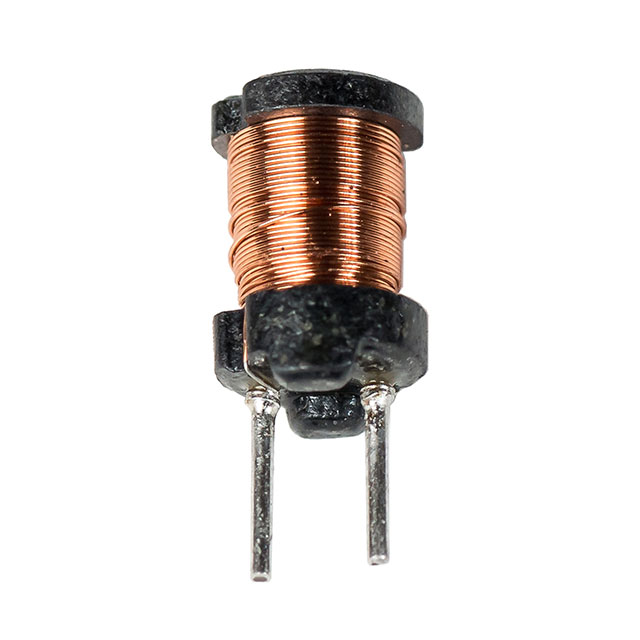

330 µH Unshielded Drum Core, Wirewound Inductor 270 mA 1.8Ohm Max Radial, Vertical Cylinder (Open)
