20-F40-10
ActiveAries Electronics

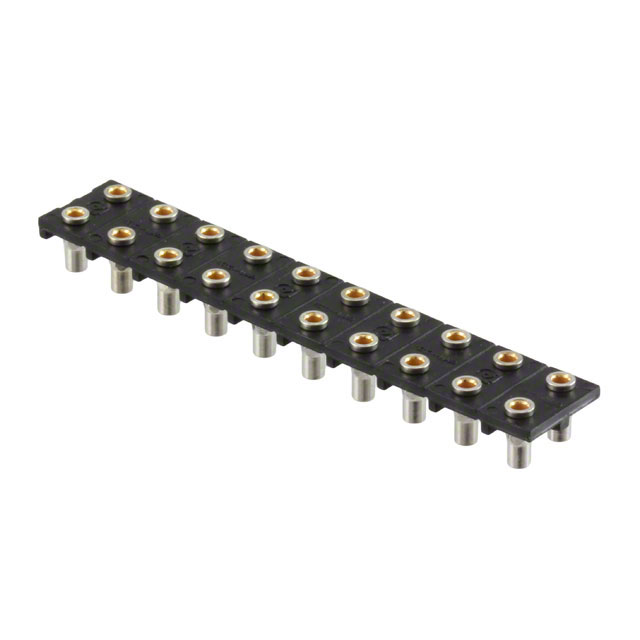

CONN RCPT 20POS 0.2 TIN PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
20-F40-10
ActiveAries Electronics
CONN RCPT 20POS 0.2 TIN PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 20-F40-10 |
|---|---|
| Connector Type | Breakaway, Receptacle |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 5.08 µm |
| Contact Finish Thickness - Mating | 200 µin |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Length - Post | 3.28 mm |
| Contact Length - Post | 0.129 " |
| Contact Material | Brass Alloy |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 8 A |
| Insulation Color | Black |
| Insulation Height | 1.02 mm |
| Insulation Height | 0.04 in |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 5.08 mm |
| Pitch - Mating | 0.2 in |
| Row Spacing - Mating [x] | 5.08 mm |
| Row Spacing - Mating [x] | 0.2 " |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 17.79 | |
| 10 | $ 15.12 | |||
| 100 | $ 12.85 | |||
| 500 | $ 11.47 | |||
Description
General part information
20-F40 Series
20 Position Receptacle, Breakaway Connector 0.200" (5.08mm) Through Hole Tin
