DX4R005JJ2R1800

Active

JAE Electronics

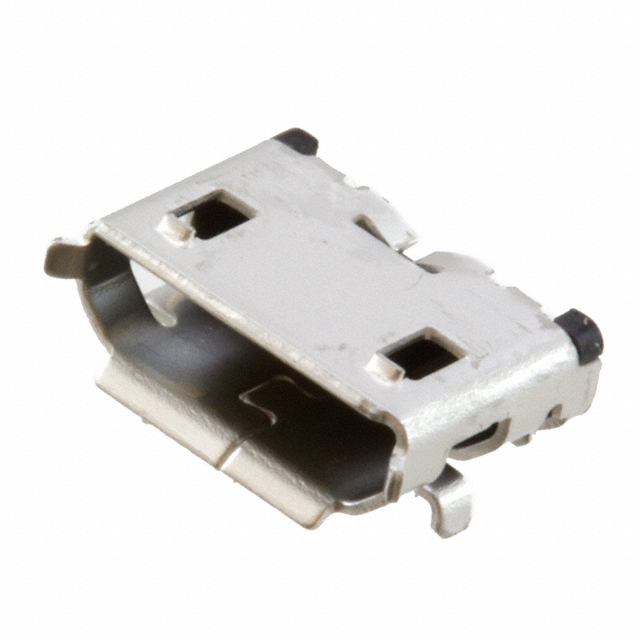

CONN RCPT USB2.0 MICRO B SMD R/A

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT USB2.0 MICRO B SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	DX4R005JJ2R1800

Connector Type	USB - micro B
Contact Finish	Gold
Current Rating (Amps)	1.8 A, 0.5 A
Features	Pick and Place, Solder Retention
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Stainless, Steel
Shielding	Unshielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

Part	Specifications	Number of Contacts	Mating Cycles	Material Flammability Rating	Shell/Shielding Material	Insulation Color	Current Rating (Amps)	Voltage - Rated	Mounting Feature	Features	Number of Ports	Gender	Shielding	Connector Type	Contact Finish	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
JAE Electronics DX4R005JJ2R1800	USB 2.0	5	10000	UL94 V-0	Stainless Steel	Black	0.5 A 1.8 A	30 V	Horizontal	Pick and Place Solder Retention	1	Receptacle	Unshielded	USB - micro B	Gold	Solder	-30 ░C	80 C	Surface Mount Right Angle Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
