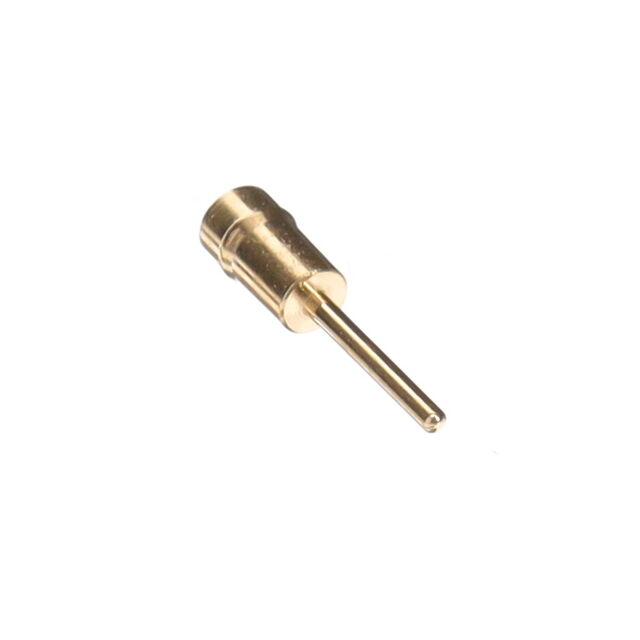

1130-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.018DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
1130-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.018DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1130-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Phosphor Bronze |
| Flange Diameter [diameter] | 1.45 mm |
| Flange Diameter [diameter] | 0.057 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.23 in |
| Length - Above Flange [x] | 5.84 mm |
| Length - Overall | 0.258 in |
| Length - Overall | 6.55 mm |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.46 mm |
| Pin Size - Above Flange [diameter] | 0.018 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.90 | |
| 10 | $ 0.76 | |||
| 25 | $ 0.73 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.68 | |||
| 250 | $ 0.62 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.50 | |||
| 3000 | $ 0.45 | |||
Description
General part information
1130-0 Series
PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia
