10326-1230-00

Active

3M (TC)

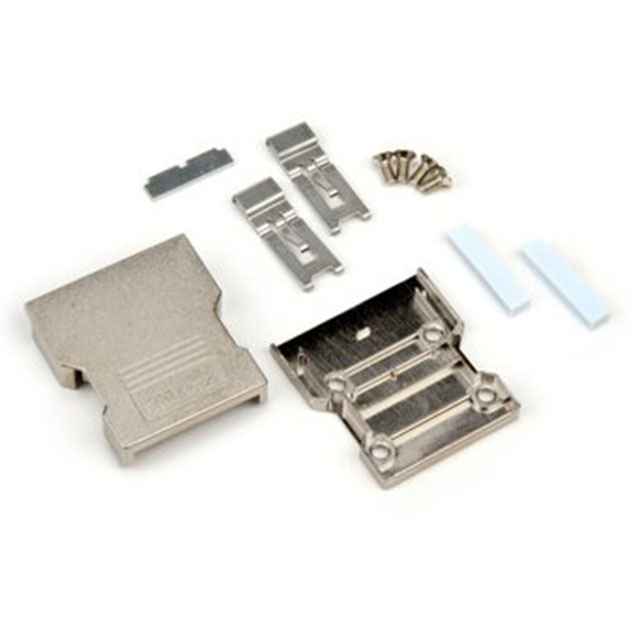

D SUB BACKSHELL, DA, 180°, ZINC BODY

Search across all available documentation for this part.

Active

3M (TC)

D SUB BACKSHELL, DA, 180°, ZINC BODY

Technical Specifications

Parameters and characteristics for this part

Part	Cable Exit	Primary Material	Color	Material	Accessory Type	Hardware	Features	Number of Positions	Cable Type	Shielding	Plating	Material [custom]	Material [custom]
3M (TC) 10326-52F0-008	180 °	Plastic	Black	Polybutylene Terephthalate (PBT) Glass Filled	Two Piece Backshell	Assembly Hardware Strain Relief	Latch Lock	26	Round	Unshielded
3M (TC) 10326-A200-00	180 °	Metal	Silver	Metal Zinc Alloy	Two Piece Backshell		Latch Lock	26	Round	Shielded	Nickel
3M (TC) 10326-32J0-000	180 °	Metal	Beige		Two Piece Backshell and Cover		Mating Screws 4-40	26	Round	Shielded		Plastic Steel	Metal
3M (TC) 10326-3210-001	180 °	Metal	Dark Gray		Two Piece Backshell and Cover		Latch Lock	26	Round	Shielded		Plastic Steel	Metal
3M (TC) 10326-52A0-008	180 °	Plastic	Black	Polybutylene Terephthalate (PBT) Glass Filled	Two Piece Backshell	Assembly Hardware Strain Relief	Mating Screws M2.6	26	Round	Unshielded
3M (TC) 10326-E2W0-008	180 °	Plastic	Black	Acrylonitrile Butadiene Styrene (ABS)	Two Piece Backshell	Assembly Hardware		26	Round
3M (TC) 10326-32J0-006	180 °	Metal	Black		Two Piece Backshell and Cover		Mating Screws 4-40	26	Round	Shielded		Plastic Steel	Metal
3M (TC) 10326-1230-00	180 °	Metal	Silver	Metal Zinc	Two Piece Backshell	Assembly Hardware Gasket	Latch Lock	26	Flat	Shielded	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Two Piece Backshell Connector Silver 180° Shielded
