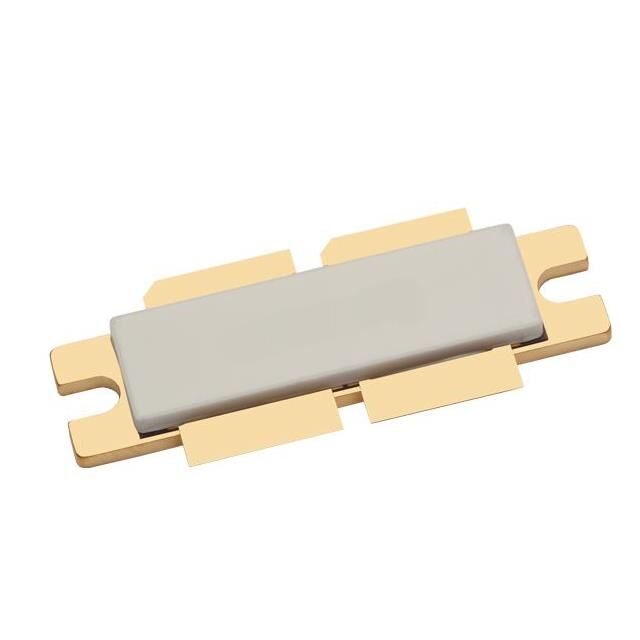

BLF6G20-230PRN,112

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V SOT539A

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V SOT539A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 2 A 1.8GHz ~ 1.88GHz 17.5dB 65W SOT539A

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RF MOSFET LDMOS 28V CDFM2

Part	Current - Test	Voltage - Rated	Gain	Power - Output	Package / Case	Current Rating (Amps)	Supplier Device Package	Frequency [Min]	Frequency [Max]	Voltage - Test	Mounting Type	Configuration
Ampleon USA Inc. BLF6G20-45,135	360 mA	65 V	19.2 dB	2.5 W	SOT-608A	13 A	CDFM2	1.8 GHz	1.88 GHz	28 V
Ampleon USA Inc. BLF6G20-75,112	550 mA	65 V	19 dB	29.5 W	SOT-502A	18 A	SOT502A	1.93 GHz	1.99 GHz	28 V	Chassis Mount
Ampleon USA Inc. BLF6G20-230PRN,118	2 A	65 V	17.5 dBi	65 W	SOT-539A		SOT539A	1.8 GHz	1.88 GHz	28 V	Chassis Mount	Common Source, Dual
Ampleon USA Inc. BLF6G20-45,112	360 mA	65 V	19.2 dB	2.5 W	SOT-608A	13 A	CDFM2	1.8 GHz	1.88 GHz	28 V	Chassis Mount
Ampleon USA Inc. BLF6G20-110,112	900 mA	65 V	19 dB	25 W	SOT-502A	29 A	SOT502A	1.93 GHz	1.99 GHz	28 V	Chassis Mount
Ampleon USA Inc. BLF6G20LS-75,118	550 mA	65 V	19 dB	29.5 W	SOT-502B	18 A	SOT502B	1.93 GHz	1.99 GHz	28 V	Chassis Mount
Ampleon USA Inc. BLF6G20LS-110,112	900 mA	65 V	19 dB	25 W	SOT-502B	29 A	SOT502B	1.93 GHz	1.99 GHz	28 V	Chassis Mount
Ampleon USA Inc. BLF6G20LS-140,112	1 A	65 V	16.5 dBi	35.5 W	SOT-502B	39 A	SOT502B	1.93 GHz	1.99 GHz	28 V	Chassis Mount
Ampleon USA Inc. BLF6G20S-45,112	360 mA	65 V	19.2 dB	2.5 W	SOT-608B	13 A	CDFM2	1.8 GHz	1.88 GHz	28 V	Chassis Mount
Ampleon USA Inc. BLF6G20-230PRN,112	2 A	65 V	17.5 dBi	65 W	SOT-539A		SOT539A	1.8 GHz	1.88 GHz	28 V	Chassis Mount	Common Source, Dual
