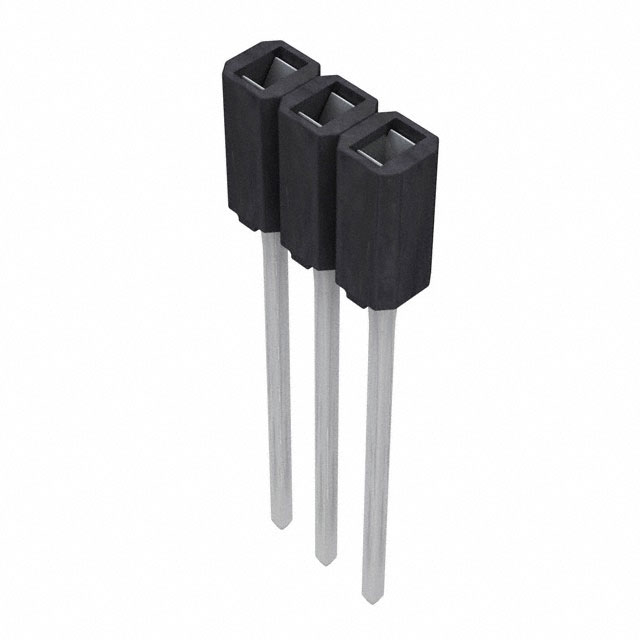

SSA-103-W-T

Active

Samtec Inc.

CONN RCPT 3POS 0.1 TIN PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 3POS 0.1 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SSA-103-W-T

Connector Type	Breakaway, Receptacle
Contact Length - Post	0.656 in
Contact Length - Post	16.66 mm
Contact Material	Phosphor Bronze
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.85 mm
Insulation Height	0.23 in
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Wire Wrap
Voltage Rating	1000 VDC

Part	Contact Type	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Number of Rows	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Fastening Type	Voltage Rating	Insulation Material	Connector Type	Number of Positions Loaded	Termination	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Samtec Inc. SSA-103-W-T-RA	Female Socket	Phosphor Bronze	14.61 mm	0.575 in	Through Hole Right Angle	1	0.1 in	2.54 mm	105 ░C	-55 °C	Black	Push-Pull	1000 VDC	Polyester Polyethylene Terephthalate (PET)	Breakaway Receptacle	All	Wire Wrap	UL94 V-0	0.1 in	2.54 mm
Samtec Inc. SSA-103-W-T	Female Socket	Phosphor Bronze			Through Hole	1	0.1 in	2.54 mm	105 ░C	-55 °C	Black	Push-Pull	1000 VDC	Polyester Polyethylene Terephthalate (PET)	Breakaway Receptacle	All	Wire Wrap	UL94 V-0	0.23 in	5.85 mm	0.656 in	16.66 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Receptacle, Breakaway Connector 0.100" (2.54mm) Through Hole Tin
