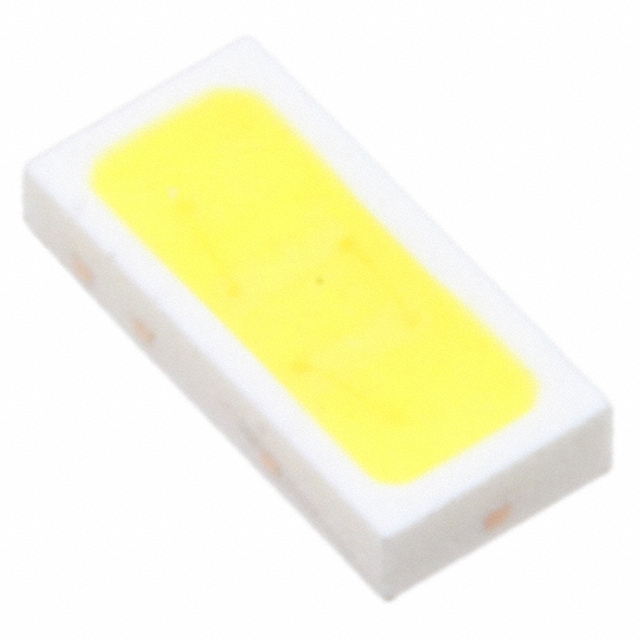

MP-3014-2100-30-90

Luminus Devices Inc.

LED MP3014 WARM WHT 3000K 3014

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MP-3014-2100-30-90

Luminus Devices Inc.

LED MP3014 WARM WHT 3000K 3014

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MP-3014-2100-30-90

Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max [Max]	120 mA
Current - Test	80 mA
Flux @ 25°C, Current - Test	54 lm
Height - Seated (Max) [Max] [z]	0.52 mm
Height - Seated (Max) [Max] [z]	0.02 "
Lumens/Watt @ Current - Test	107 lm/W
Mounting Type	Surface Mount
Package / Case	3014 Metric, 1206
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	1.4 mm
Size / Dimension [y]	0.055 in
Supplier Device Package	3014
Thermal Resistance of Package [custom]	23 °C/W
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	6.3 V

MP-3014 Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - Test	Viewing Angle	Flux @ 25°C, Current - Test	Color	Thermal Resistance of Package [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	CCT (K)	Package / Case	CRI (Color Rendering Index)	Current - Max [Max]
Luminus Devices Inc. MP-3014-2100-50-70	0.52 mm	0.02 "	3014	Surface Mount	6.3 V	80 mA	110 °	62 lm	Cool White	23 °C/W	0.118 in	1.4 mm	0.055 in	3 mm	123 lm/W	5000 K	1206 3014 Metric	70	120 mA
Luminus Devices Inc. MP-3014-1100-22-80	0.52 mm	0.02 "	3014	Surface Mount	2.85 V	60 mA	110 °	22 lm	Warm White	12 °C/W	0.118 in	1.4 mm	0.055 in	3 mm	129 lm/W	2200 K	1206 3014 Metric	80	150 mA
Luminus Devices Inc. MP-3014-1100-65-80	0.52 mm	0.02 "	3014	Surface Mount	2.85 V	60 mA	110 °	32 lm	Cool White	12 °C/W	0.118 in	1.4 mm	0.055 in	3 mm	187 lm/W	6500 K	1206 3014 Metric	80	150 mA
Luminus Devices Inc. MP-3014-1100-27-80	0.52 mm	0.02 "	3014	Surface Mount	2.85 V	60 mA	110 °	28 lm	Warm White	12 °C/W	0.118 in	1.4 mm	0.055 in	3 mm	164 lm/W	2700 K	1206 3014 Metric	80	150 mA
Luminus Devices Inc. MP-3014-2100-30-90	0.52 mm	0.02 "	3014	Surface Mount	6.3 V	80 mA	110 °	54 lm	Warm White	23 °C/W	0.118 in	1.4 mm	0.055 in	3 mm	107 lm/W		1206 3014 Metric	90	120 mA
Luminus Devices Inc. MP-3014-1100-35-80	0.52 mm	0.02 "	3014	Surface Mount	2.85 V	60 mA	110 °	29 lm	Warm White	12 °C/W	0.118 in	1.4 mm	0.055 in	3 mm	170 lm/W	3500 K	1206 3014 Metric	80	150 mA
Luminus Devices Inc. MP-3014-1100-65-70	0.52 mm	0.02 "	3014	Surface Mount	2.85 V	60 mA	110 °	34 lm	Cool White	12 °C/W	0.118 in	1.4 mm	0.055 in	3 mm	199 lm/W	6500 K	1206 3014 Metric	70	150 mA
Luminus Devices Inc. MP-3014-2100-57-80	0.52 mm	0.02 "	3014	Surface Mount	6.3 V	80 mA	110 °	60 lm	Cool White	23 °C/W	0.118 in	1.4 mm	0.055 in	3 mm	119 lm/W	5700 K	1206 3014 Metric	80	120 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	80000	$ 0.05
		125000	$ 0.04

Description

General part information

MP-3014 Series

LED Lighting MP-3014 White, Warm 3000K 6.3V 80mA 110° 1206 (3014 Metric)
