3282-6PG-315
ActiveConxall/Switchcraft

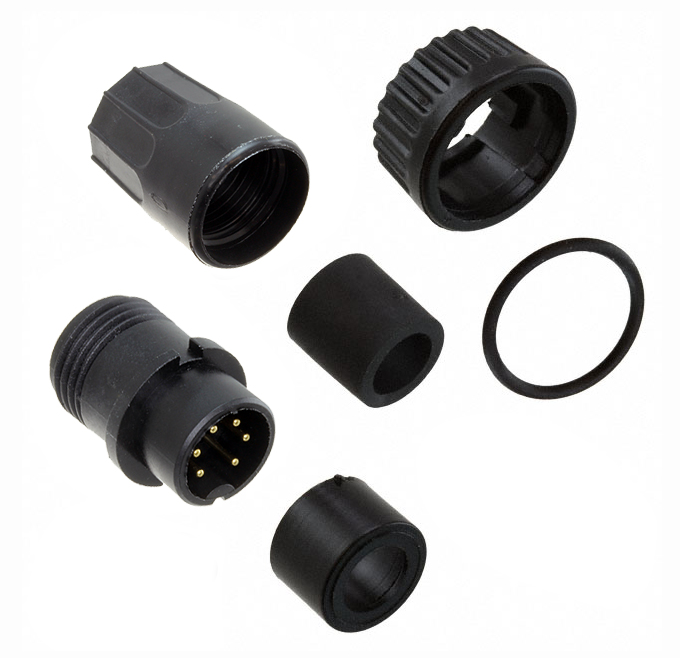

CONN PLUG MALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
3282-6PG-315
ActiveConxall/Switchcraft
CONN PLUG MALE 6P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3282-6PG-315 | 3282-6P Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 5.84 - 7.37 mm |
| Cable Opening | - | 5.33 - 7.62 mm |
| Cable Opening | - | 0.23 - 0.32 in |
| Cable Opening | - | 0.21 - 0.3 in |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening | - | 8.13 mm |
| Cable Opening [custom] | 0.17 in, 0.15 in | 0.15 - 0.17 in |
| Cable Opening [custom] | 3.81 mm, 4.32 mm | 3.81 - 4.32 mm |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
3282-6P Series
CONN PLUG MALE 6P GOLD SLDR CUP
| Part | Color | Features | Cable Opening [custom] | Cable Opening [custom] | Fastening Type | Voltage Rating | Orientation | Primary Material | Mounting Type | Ingress Protection | Connector Type | Backshell Material, Plating | Number of Positions | Shielding | Contact Material | Contact Finish - Mating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 3282-6PG-515 | Black | Backshell, Cable Clamp | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | Bayonet Lock | 600 V | Keyed | Plastic | Free Hanging (In-Line) | Weathertight | Male Pins, Plug | Nylon, Polyamide (PA) | 6 | Unshielded | Brass | Gold | 5.6 A | -40 °C | 115 °C | |||||||||
Conxall/Switchcraft 3282-6PG-328 | Black | Backshell | Bayonet Lock | 600 V | Keyed | Plastic | Free Hanging (In-Line) | Weathertight | Male Pins, Plug | Nylon, Polyamide (PA) | 6 | Unshielded | Brass | Gold | 5.6 A | -40 °C | 115 °C | 7.37 mm | 7.11 mm | 0.29 in | 0.28 in | |||||||
Conxall/Switchcraft 3282-6PG-3DC | Black | Backshell | Bayonet Lock | 600 V | Keyed | Plastic | Free Hanging (In-Line) | Weathertight | Male Pins, Plug | Nylon, Polyamide (PA) | 6 | Unshielded | Brass | Gold | 5.6 A | -40 °C | 115 °C | |||||||||||
Conxall/Switchcraft 3282-6PG-318 | Black | Backshell | Bayonet Lock | 600 V | Keyed | Plastic | Free Hanging (In-Line) | Weathertight | Male Pins, Plug | Nylon, Polyamide (PA) | 6 | Unshielded | Brass | Gold | 5.6 A | -40 °C | 115 °C | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||||
Conxall/Switchcraft 3282-6PG-330 | Black | Backshell | Bayonet Lock | 600 V | Keyed | Plastic | Free Hanging (In-Line) | Weathertight | Male Pins, Plug | Nylon, Polyamide (PA) | 6 | Unshielded | Brass | Gold | 5.6 A | -40 °C | 115 °C | 7.62 mm | 0.32 in | 0.3 in | 8.13 mm | |||||||
Conxall/Switchcraft 3282-6PG-321 | Black | Backshell | Bayonet Lock | 600 V | Keyed | Plastic | Free Hanging (In-Line) | Weathertight | Male Pins, Plug | Nylon, Polyamide (PA) | 6 | Unshielded | Brass | Gold | 5.6 A | -40 °C | 115 °C | 5.84 mm | 5.33 mm | 0.23 in | 0.21 in | |||||||
Conxall/Switchcraft 3282-6PG-530 | Black | Backshell, Cable Clamp | Bayonet Lock | 600 V | Keyed | Plastic | Free Hanging (In-Line) | Weathertight | Male Pins, Plug | Nylon, Polyamide (PA) | 6 | Unshielded | Brass | Gold | 5.6 A | -40 °C | 115 °C | 7.62 mm | 0.32 in | 0.3 in | 8.13 mm | |||||||
Conxall/Switchcraft 3282-6PG-521 | Black | Backshell, Cable Clamp | Bayonet Lock | 600 V | Keyed | Plastic | Free Hanging (In-Line) | Weathertight | Male Pins, Plug | Nylon, Polyamide (PA) | 6 | Unshielded | Brass | Gold | 5.6 A | -40 °C | 115 °C | 5.84 mm | 5.33 mm | 0.23 in | 0.21 in | |||||||
Conxall/Switchcraft 3282-6PG-324 | Black | Backshell | Bayonet Lock | 600 V | Keyed | Plastic | Free Hanging (In-Line) | Weathertight | Male Pins, Plug | Nylon, Polyamide (PA) | 6 | Unshielded | Brass | Gold | 5.6 A | -40 °C | 115 °C | 6.86 mm | 6.1 mm | 0.27 in | 0.24 in | |||||||
Conxall/Switchcraft 3282-6PG-315 | Black | Backshell | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | Bayonet Lock | 600 V | Keyed | Plastic | Free Hanging (In-Line) | Weathertight | Male Pins, Plug | Nylon, Polyamide (PA) | 6 | Unshielded | Brass | Gold | 5.6 A | -40 °C | 115 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.95 | |
| 10 | $ 8.82 | |||
| 25 | $ 8.48 | |||
| 50 | $ 8.14 | |||
| 100 | $ 7.96 | |||
Description
General part information
3282-6P Series
6 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
