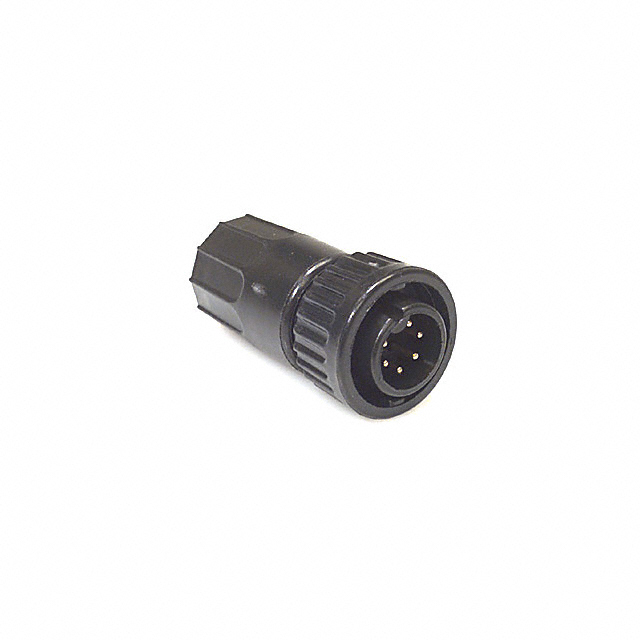

3282-6PG-3DC

Active

Conxall/Switchcraft

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cable Assemblies & Connectors Catalog

3282-6PG-3DC

Active

Conxall/Switchcraft

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Cable Assemblies & Connectors Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.93
		10	$ 9.69
		25	$ 9.32
		50	$ 8.95
		100	$ 8.75

Description

General part information

3282-6P Series

6 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Cable Assemblies & Connectors Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3282-6PG-3DC	3282-6P Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	8.13 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Cable Clamp, Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3282-6P Series

CONN PLUG MALE 6P GOLD SLDR CUP

Part	Color	Features	Cable Opening [custom]	Cable Opening [custom]	Fastening Type	Voltage Rating	Orientation	Primary Material	Mounting Type	Ingress Protection	Connector Type	Backshell Material, Plating	Number of Positions	Shielding	Contact Material	Contact Finish - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 3282-6PG-515	Black	Backshell, Cable Clamp	0.15 in, 0.17 in	3.81 mm, 4.32 mm	Bayonet Lock	600 V	Keyed	Plastic	Free Hanging (In-Line)	Weathertight	Male Pins, Plug	Nylon, Polyamide (PA)	6	Unshielded	Brass	Gold	5.6 A	-40 °C	115 °C
Conxall/Switchcraft 3282-6PG-328	Black	Backshell			Bayonet Lock	600 V	Keyed	Plastic	Free Hanging (In-Line)	Weathertight	Male Pins, Plug	Nylon, Polyamide (PA)	6	Unshielded	Brass	Gold	5.6 A	-40 °C	115 °C	7.37 mm	7.11 mm	0.29 in	0.28 in
Conxall/Switchcraft 3282-6PG-3DC	Black	Backshell			Bayonet Lock	600 V	Keyed	Plastic	Free Hanging (In-Line)	Weathertight	Male Pins, Plug	Nylon, Polyamide (PA)	6	Unshielded	Brass	Gold	5.6 A	-40 °C	115 °C
Conxall/Switchcraft 3282-6PG-318	Black	Backshell			Bayonet Lock	600 V	Keyed	Plastic	Free Hanging (In-Line)	Weathertight	Male Pins, Plug	Nylon, Polyamide (PA)	6	Unshielded	Brass	Gold	5.6 A	-40 °C	115 °C					4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-6PG-330	Black	Backshell			Bayonet Lock	600 V	Keyed	Plastic	Free Hanging (In-Line)	Weathertight	Male Pins, Plug	Nylon, Polyamide (PA)	6	Unshielded	Brass	Gold	5.6 A	-40 °C	115 °C		7.62 mm	0.32 in	0.3 in					8.13 mm
Conxall/Switchcraft 3282-6PG-321	Black	Backshell			Bayonet Lock	600 V	Keyed	Plastic	Free Hanging (In-Line)	Weathertight	Male Pins, Plug	Nylon, Polyamide (PA)	6	Unshielded	Brass	Gold	5.6 A	-40 °C	115 °C	5.84 mm	5.33 mm	0.23 in	0.21 in
Conxall/Switchcraft 3282-6PG-530	Black	Backshell, Cable Clamp			Bayonet Lock	600 V	Keyed	Plastic	Free Hanging (In-Line)	Weathertight	Male Pins, Plug	Nylon, Polyamide (PA)	6	Unshielded	Brass	Gold	5.6 A	-40 °C	115 °C		7.62 mm	0.32 in	0.3 in					8.13 mm
Conxall/Switchcraft 3282-6PG-521	Black	Backshell, Cable Clamp			Bayonet Lock	600 V	Keyed	Plastic	Free Hanging (In-Line)	Weathertight	Male Pins, Plug	Nylon, Polyamide (PA)	6	Unshielded	Brass	Gold	5.6 A	-40 °C	115 °C	5.84 mm	5.33 mm	0.23 in	0.21 in
Conxall/Switchcraft 3282-6PG-324	Black	Backshell			Bayonet Lock	600 V	Keyed	Plastic	Free Hanging (In-Line)	Weathertight	Male Pins, Plug	Nylon, Polyamide (PA)	6	Unshielded	Brass	Gold	5.6 A	-40 °C	115 °C	6.86 mm	6.1 mm	0.27 in	0.24 in
Conxall/Switchcraft 3282-6PG-315	Black	Backshell	0.15 in, 0.17 in	3.81 mm, 4.32 mm	Bayonet Lock	600 V	Keyed	Plastic	Free Hanging (In-Line)	Weathertight	Male Pins, Plug	Nylon, Polyamide (PA)	6	Unshielded	Brass	Gold	5.6 A	-40 °C	115 °C
