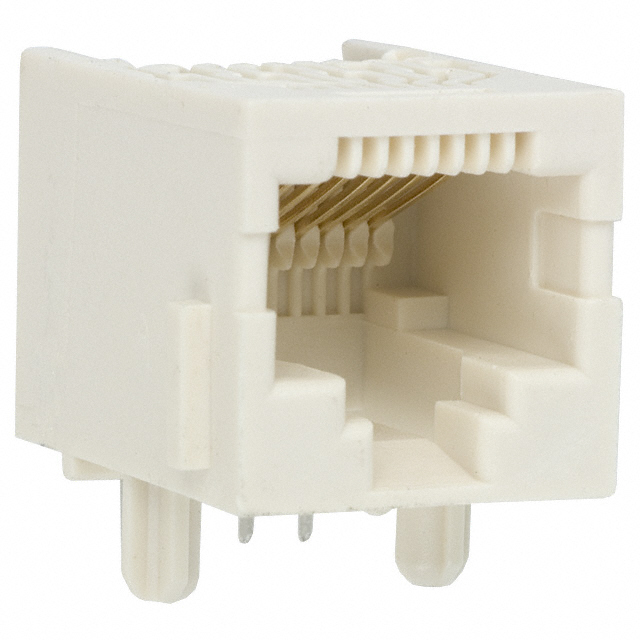

RJ45-8L-B

Obsolete

TE Connectivity Corcom Filters

CONN MOD JACK 8P8C R/A UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJ45-8L-B

Obsolete

TE Connectivity Corcom Filters

CONN MOD JACK 8P8C R/A UNSHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RJ45 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded

Documents

Technical documentation and resources

Datasheet

Specification	RJ45-8L-B	RJ45 Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	Filter, Panel Stops, Board Guide	Board Lock, Panel Stops, Board Guide, Filter
Housing Material	-	Polyamide (PA), Nylon, Glass Filled
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet), 8p6c
Number of Rows	1	1
Orientation	90 °	90 °
Shielding	Unshielded	Shielded, Unshielded, Shielded, EMI Finger
Tab Direction	Down	Down
Termination	Solder	Solder

Part	Tab Direction	Number of Ports	Features	Connector Type	Termination	Mounting Type	LED Color	Number of Positions/Contacts	Orientation	Contact Material	Number of Rows	Shielding	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Housing Material
TE Connectivity Corcom Filters RJ45-8Z4	Down	1	Board Lock, Panel Stops	Jack	Solder	Through Hole	Does Not Contain LED	8p8c (RJ45, Ethernet)	90 °	Phosphor Bronze	1	Shielded	Gold	50 µin	1.27 µm
TE Connectivity Corcom Filters RJ45-8X	Down	1	Board Guide, Panel Stops	Jack	Solder	Through Hole	Does Not Contain LED	8p8c (RJ45, Ethernet)	90 °	Phosphor Bronze	1	Unshielded	Gold	50 µin	1.27 µm
TE Connectivity Corcom Filters RJ45-8L1-B	Down	1	Board Guide, Filter	Jack	Solder	Through Hole	Does Not Contain LED	8p8c (RJ45, Ethernet)	90 °	Phosphor Bronze	1	Shielded, EMI Finger	Gold	50 µin	1.27 µm
TE Connectivity Corcom Filters RJ45-6LC2-B	Down	1	Board Guide, Filter, Panel Stops	Jack	Solder	Through Hole	Does Not Contain LED	8p6c	90 °	Phosphor Bronze	1	Shielded	Gold	50 µin	1.27 µm
TE Connectivity Corcom Filters RJ45-8L-B	Down	1	Board Guide, Filter, Panel Stops	Jack	Solder	Through Hole	Does Not Contain LED	8p8c (RJ45, Ethernet)	90 °	Phosphor Bronze	1	Unshielded	Gold	50 µin	1.27 µm
TE Connectivity Corcom Filters RJ45-6X	Down	1	Board Guide, Panel Stops	Jack	Solder	Through Hole	Does Not Contain LED	8p6c	90 °	Phosphor Bronze	1	Unshielded	Gold	50 µin	1.27 µm
TE Connectivity Corcom Filters RJ45-6LC2-S	Down	1	Board Guide, Filter, Panel Stops	Jack	Solder	Through Hole	Does Not Contain LED	8p6c	90 °	Phosphor Bronze	1	Shielded	Gold	50 µin	1.27 µm
TE Connectivity Corcom Filters RJ45-6L1-B	Down	1	Board Guide, Filter	Jack	Solder	Through Hole	Does Not Contain LED	8p6c	90 °	Phosphor Bronze	1	Shielded, EMI Finger	Gold	50 µin	1.27 µm
TE Connectivity Corcom Filters RJ45-8N4-S	Down	1	Board Lock, Filter, Panel Stops	Jack	Solder	Through Hole	Does Not Contain LED	8p8c (RJ45, Ethernet)	90 °	Phosphor Bronze	1	Shielded	Gold	50 µin	1.27 µm	Polyamide (PA), Nylon, Glass Filled
TE Connectivity Corcom Filters RJ45-6LC1-B	Down	1	Board Guide, Filter	Jack	Solder	Through Hole	Does Not Contain LED	8p6c	90 °	Phosphor Bronze	1	Shielded, EMI Finger	Gold	50 µin	1.27 µm
