Active

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 42V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 42V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

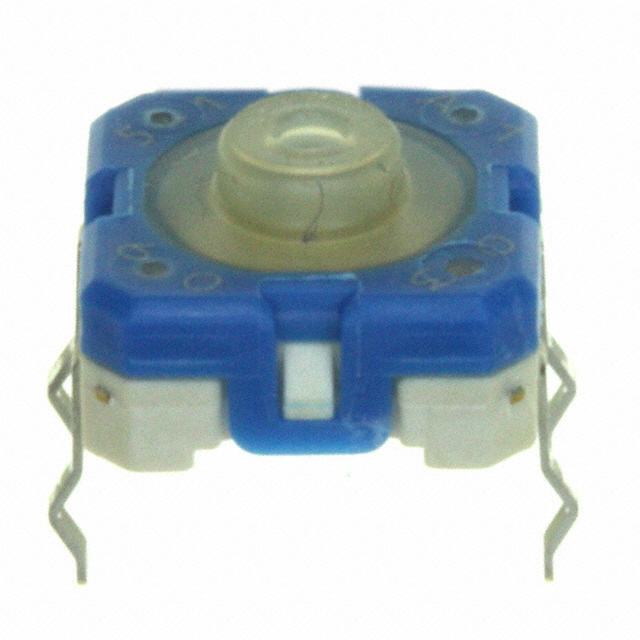

Tactile Switch SPST-NO Top Actuated Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1.14.100.501/0000	1.14.100 Series

Actuator Height off PCB, Vertical	-	5 mm
Actuator Height off PCB, Vertical [z]	4.9 mm	4.9 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	42 VAC/DC, 0.1 A	0.1 - 42 VAC/DC
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Force	330 gf	330 - 489 gf
Operating Temperature [Max]	80 C	80 - 90 C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	8.4 mm	8.4 mm
Outline [y]	8.4 mm	8.4 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.34 mm	0.34 - 0.42 mm
Termination Style	PC Pin	PC Pin, Gull Wing

SWITCH TACTILE SPST-NO 0.1A 42V

Part	Mechanical Life	Illumination	Switch Function	Mounting Type	Operating Force	Actuator Orientation	Termination Style	Actuator Type	Outline [y]	Outline [x]	Switch Travel	Actuator Height off PCB, Vertical [z]	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage	Actuator Height off PCB, Vertical
RAFI USA 1.14.100.502/0000	1000000 Cycles	Non-Illuminated	Off-Mom	Through Hole	330 gf	Top Actuated	PC Pin	Standard	8.4 mm	8.4 mm	0.34 mm	4.9 mm	SPST-NO	-40 °C	80 C	0.1 A, 42 VAC/DC
RAFI USA 1.14.100.501/0000	1000000 Cycles	Non-Illuminated	Off-Mom	Through Hole	330 gf	Top Actuated	PC Pin	Standard	8.4 mm	8.4 mm	0.34 mm	4.9 mm	SPST-NO	-40 °C	80 C	0.1 A, 42 VAC/DC
RAFI USA 1.14.100.603/0000	1000000 Cycles	Non-Illuminated	Off-Mom	Surface Mount	489 gf	Top Actuated	Gull Wing	Standard	8.4 mm	8.4 mm	0.42 mm		SPST-NO	-40 °C	90 °C	0.1 A, 35 VAC/DC	5 mm
RAFI USA 1.14.100.602/0000	1000000 Cycles	Non-Illuminated	Off-Mom	Through Hole	489 gf	Top Actuated	PC Pin	Standard	8.4 mm	8.4 mm	0.42 mm	4.9 mm	SPST-NO	-40 °C	90 °C	0.1 A, 35 VAC/DC
RAFI USA 1.14.100.503/0000	1000000 Cycles	Non-Illuminated	Off-Mom	Surface Mount	330 gf	Top Actuated	Gull Wing	Standard	8.4 mm	8.4 mm	0.34 mm		SPST-NO	-40 °C	80 C	0.1 A, 42 VAC/DC	5 mm
