3005W5SXX56N40X

Active

Amphenol CONEC

CONN D-SUB RCPT 5POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

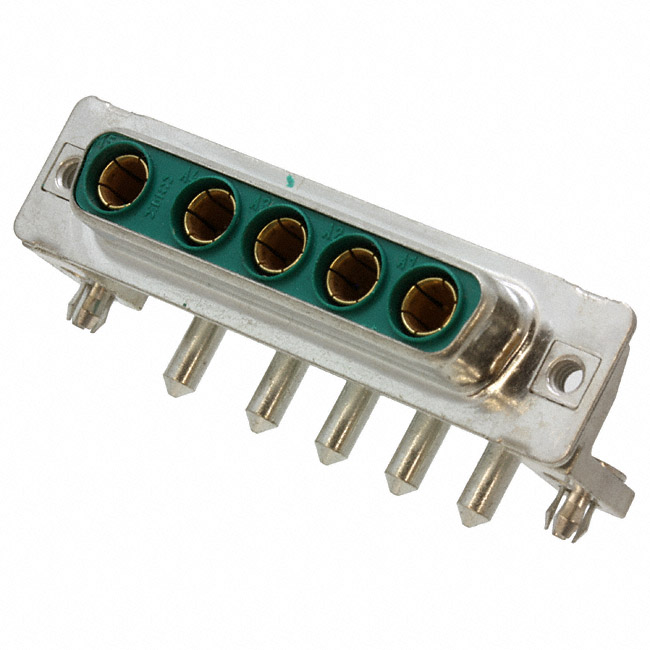

3005W5SXX56N40X

Active

Amphenol CONEC

CONN D-SUB RCPT 5POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3005W5SXX56N40X

Backset Spacing	11.65 mm
Backset Spacing	0.459 "
Color	Green
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions [custom]	5
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	250 VDC

3005W5S Series

Part	Connector Type	Connector Style	Flange Feature	Number of Rows	Color	Shell Size, Connector Layout	Shell Size, Connector Layout	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Contact Type	Dielectric Material	Number of Positions [custom]	Mating Cycles	Shell Material, Finish	Shell Finish Thickness	Shell Finish Thickness	Material Flammability Rating	Contact Material	Current Rating (Amps)	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Termination	Backset Spacing	Backset Spacing
Amphenol CONEC 3005W5SXXG9P20X	Receptacle Female Sockets
Amphenol CONEC 3005W5SXX99A10X	Receptacle for Female Contacts	Combo D-Sub	Housing/Shell (Unthreaded)	1	Green	5W5	3	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Coax Power	Polybutylene Terephthalate (PBT) Glass Filled
Amphenol CONEC 3005W5SXX99E20X	Receptacle for Female Contacts	Combo D-Sub	4-40 Board Side	1	Green	5W5	3	Through Hole				Power	Polybutylene Terephthalate (PBT) Glass Filled	5	500	Steel Tin-Nickel Plated	8 µm	315 µin
Amphenol CONEC 3005W5SXX42A10X	Receptacle Female Sockets	Combo D-Sub	Housing/Shell (Unthreaded)	1	Green	5W5	3	Free Hanging (In-Line)	-55 °C	125 °C		Power	Polybutylene Terephthalate (PBT) Glass Filled	5					UL94 V-0	Copper Alloy	20 A	14 AWG	12 AWG	Gold	0.76 Ám	30 Áin
Amphenol CONEC 3005W5SXX56N40X	Receptacle Female Sockets	Combo D-Sub	Housing/Shell (4-40)	1	Green	5W5	3	Board Edge Right Angle Through Hole	-55 °C	125 °C		Power	Polybutylene Terephthalate (PBT) Glass Filled	5					UL94 V-0	Copper Alloy	20 A			Gold	0.76 Ám	30 Áin	250 VDC	Solder	11.65 mm	0.459 "
Amphenol CONEC 3005W5SXX99A30X	Receptacle for Female Contacts	Combo D-Sub	Cable Side	1	Green	5W5	3	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Coax Power	Polybutylene Terephthalate (PBT) Glass Filled				8.13 µm	320 µin
Amphenol CONEC 3005W5SXX69E40X	Receptacle Female Sockets	Combo D-Sub		1	Green	5W5	3		-55 °C	125 °C		Power	Polybutylene Terephthalate (PBT) Glass Filled	5					UL94 V-0	Copper Alloy	20 A			Gold			250 VDC
Amphenol CONEC 3005W5SXX99E40X	Receptacle for Female Contacts	Combo D-Sub	4-40 Board Side	1	Green	5W5	3	Through Hole				Power	Polybutylene Terephthalate (PBT) Glass Filled	5	500	Steel Tin-Nickel Plated	8 µm	315 µin
Amphenol CONEC 3005W5SXX99F20X	Receptacle for Female Contacts	Combo D-Sub	4-40	1		5W5	3	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Coax Power	Polybutylene Terephthalate (PBT) Glass Filled
