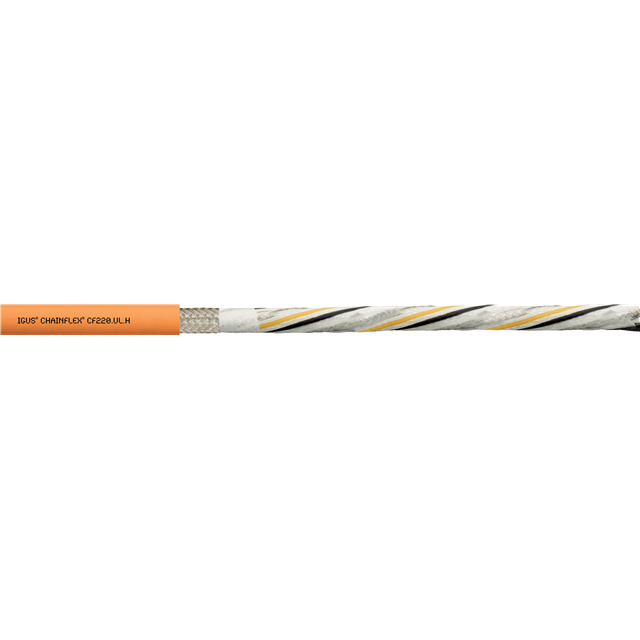

CF220-UL-H102-25-04

Active

Igus

CABLE 8COND 14-22AWG ORANGE FEET

Search across all available documentation for this part.

Active

Igus

CABLE 8COND 14-22AWG ORANGE FEET

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Orange 14 AWG, 17 AWG, 22 AWG Braid Enter Number of Feet in Order Quantity

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	CF220-UL-H102-25-04	CF220 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polyethylene (XLPE), Irradiated	Polyethylene (XLPE), Irradiated
Conductor Material	Copper, Bare	Copper, Bare
Features	Flame Retardant, Oil Resistant	Flame Retardant, Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.571 in	0.472 - 0.571 in
Jacket (Insulation) Diameter [diameter]	14.5 mm	11.99 - 14.5 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Orange	Orange
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	8	8
Ratings	UL Style 2570	UL Style 2570
Shield Coverage	80 %	80 - 100 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Servo Motor, Industrial	Servo Motor, Industrial
Voltage	1000 V	1000 V
Wire Gauge	13.5 AWG, 22 AWG, 17 AWG	13.5 - 22 AWG
Wire Gauge	-	18 AWG, 17 AWG, 22 AWG

CABLE 8COND 18AWG/22AWG FEET

Part	Length	Jacket Color	Voltage	Usage	Jacket (Insulation) Material	Shield Material	Conductor Material	Cable Type	Conductor Insulation	Ratings	Shield Type	Wire Gauge	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Features	Wire Gauge
Igus CF220-UL-H100-07-04	Enter Number of Feet in Order Quantity	Orange	1000 V	Industrial, Servo Motor	Poly-Vinyl Chloride (PVC)	Copper, Tinned	Copper, Bare	Multi-Conductor	Polyethylene (XLPE), Irradiated	UL Style 2570	Braid	18 AWG, 22 AWG	80 %	0.472 in	11.99 mm	8	Flame Retardant, Oil Resistant
Igus CF220-UL-H102-25-04	Enter Number of Feet in Order Quantity	Orange	1000 V	Industrial, Servo Motor	Poly-Vinyl Chloride (PVC)	Copper, Tinned	Copper, Bare	Multi-Conductor	Polyethylene (XLPE), Irradiated	UL Style 2570	Braid	13.5 AWG, 17 AWG, 22 AWG	80 %	0.571 in	14.5 mm	8	Flame Retardant, Oil Resistant
Igus CF220-UL-H101-10-04	Enter Number of Feet in Order Quantity	Orange	1000 V	Industrial, Servo Motor	Poly-Vinyl Chloride (PVC)	Copper, Tinned	Copper, Bare	Multi-Conductor	Polyethylene (XLPE), Irradiated	UL Style 2570	Braid		80 %, 100 %	0.472 in	11.99 mm	8	Flame Retardant, Oil Resistant	17 AWG, 18 AWG, 22 AWG
