ActiveTE Connectivity AMP Connectors
H16B-TBFH-PG21
Deep-Dive with AI
Search across all available documentation for this part.
T1750162121-000
ActiveTE Connectivity AMP Connectors
H16B-TBFH-PG21
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1750162121-000 | T175 Series |
|---|---|---|
| Connector Type | Hood - Coupling | Hood - Coupling, Hood |
| Features | Cable to Cable | Cable to Cable |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Hood Top | Locking Clip (2) on Hood Top, Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H16B | H24B, H10B, H16B |
| Size / Dimension [x] | 95.3 mm | 74.8 - 121.8 mm |
| Size / Dimension [x] | 3.752 in | 2.945 - 4.795 " |
| Size / Dimension [y] | 44.8 mm | 44.5 - 53 mm |
| Size / Dimension [y] | 1.764 " | 1.752 - 2.087 " |
| Size / Dimension [z] | 3.091 in | 2.933 - 3.091 in |
| Size / Dimension [z] | 78.5 mm | 74.5 - 78.5 mm |
| Style | Bottom Entry | Bottom Entry, Bottom Entry, Dual, Top Entry |
| Thread Size | PG21 | PG29, PG21, M25, M32, PG16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.58 | |
| 10 | $ 14.28 | |||
| 25 | $ 13.90 | |||
| 50 | $ 13.37 | |||
T175 Series
T1750241129-000
| Part | Features | Ingress Protection | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Size | Housing Finish | Housing Material | Style | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Lock Location | Thread Size | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1750241129-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H24B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.772 " | 3.091 in | 78.5 mm | 45 mm | 4.795 " | 121.8 mm | Locking Clip (2) on Hood Top | PG29 | Hood - Coupling |
TE Connectivity AMP Connectors T1750101121-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H10B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.752 " | 2.933 " | 74.5 mm | 44.5 mm | 2.945 in | 74.8 mm | Locking Clip (2) on Hood Top | PG21 | Hood - Coupling |
TE Connectivity AMP Connectors T1750162121-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H16B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.764 " | 3.091 in | 78.5 mm | 44.8 mm | 3.752 in | 95.3 mm | Locking Clip (2) on Hood Top | PG21 | Hood - Coupling |
TE Connectivity AMP Connectors T1750102121-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H10B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.764 " | 2.933 " | 74.5 mm | 44.8 mm | 2.945 in | 74.8 mm | Locking Clip (2) on Hood Top | PG21 | Hood - Coupling |
TE Connectivity AMP Connectors T1750161121-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H16B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.764 " | 3.091 in | 78.5 mm | 44.8 mm | 3.752 in | 95.3 mm | Locking Clip (2) on Hood Top | PG21 | Hood - Coupling |
TE Connectivity AMP Connectors T1750162225-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H16B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry, Dual | 1.764 " | 3.091 in | 78.5 mm | 44.8 mm | 3.752 in | 95.3 mm | Locking Clip (2) on Hood Top | M25 | Hood - Coupling |
TE Connectivity AMP Connectors T1750241121-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H24B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.772 " | 3.091 in | 78.5 mm | 45 mm | 4.795 " | 121.8 mm | Locking Clip (2) on Hood Top | PG21 | Hood - Coupling |
TE Connectivity AMP Connectors T1750162129-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H16B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.764 " | 3.091 in | 78.5 mm | 44.8 mm | 3.752 in | 95.3 mm | Locking Clip (2) on Hood Top | PG29 | Hood - Coupling |
TE Connectivity AMP Connectors T1750161129-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H16B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.764 " | 3.091 in | 78.5 mm | 44.8 mm | 3.752 in | 95.3 mm | Locking Clip (2) on Hood Top | PG29 | Hood - Coupling |
TE Connectivity AMP Connectors T1750242221-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H24B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry, Dual | 1.772 " | 3.091 in | 78.5 mm | 45 mm | 4.795 " | 121.8 mm | Locking Clip (2) on Hood Top | PG21 | Hood - Coupling |
TE Connectivity AMP Connectors T1750242132-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H24B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.772 " | 3.091 in | 78.5 mm | 45 mm | 4.795 " | 121.8 mm | Locking Clip (2) on Hood Top | M32 | Hood - Coupling |
TE Connectivity AMP Connectors T1750242129-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H24B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.772 " | 3.091 in | 78.5 mm | 45 mm | 4.795 " | 121.8 mm | Locking Clip (2) on Hood Top | PG29 | Hood - Coupling |
TE Connectivity AMP Connectors T1750162221-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H16B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry, Dual | 1.764 " | 3.091 in | 78.5 mm | 44.8 mm | 3.752 in | 95.3 mm | Locking Clip (2) on Hood Top | PG21 | Hood - Coupling |
TE Connectivity AMP Connectors T1750101132-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H10B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.752 " | 2.933 " | 74.5 mm | 44.5 mm | 2.945 in | 74.8 mm | Locking Clip (2) on Hood Top | M32 | Hood - Coupling |
TE Connectivity AMP Connectors T1750102116-000 | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H10B | Powder Coated | Aluminum Alloy, Die Cast | Top Entry | 2.087 in | 2.933 " | 74.5 mm | 53 mm | 2.945 in | 74.8 mm | Locking Clip (2) on Base Bottom | PG16 | Hood | |
TE Connectivity AMP Connectors T1750162140-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H16B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.764 " | 3.091 in | 78.5 mm | 44.8 mm | 3.752 in | 95.3 mm | Locking Clip (2) on Hood Top | Hood - Coupling | |
TE Connectivity AMP Connectors T1750101129-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H10B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.752 " | 2.933 " | 74.5 mm | 44.5 mm | 2.945 in | 74.8 mm | Locking Clip (2) on Hood Top | PG29 | Hood - Coupling |
TE Connectivity AMP Connectors T1750241125-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H24B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.772 " | 3.091 in | 78.5 mm | 45 mm | 4.795 " | 121.8 mm | Locking Clip (2) on Hood Top | M25 | Hood - Coupling |
TE Connectivity AMP Connectors T1750241132-000 | Cable to Cable | IP65 - Dust Tight, Water Resistant | Gray | 125 °C | -40 °C | H24B | Powder Coated | Aluminum Alloy, Die Cast | Bottom Entry | 1.772 " | 3.091 in | 78.5 mm | 45 mm | 4.795 " | 121.8 mm | Locking Clip (2) on Hood Top | M32 | Hood - Coupling |
Description
General part information
T175 Series

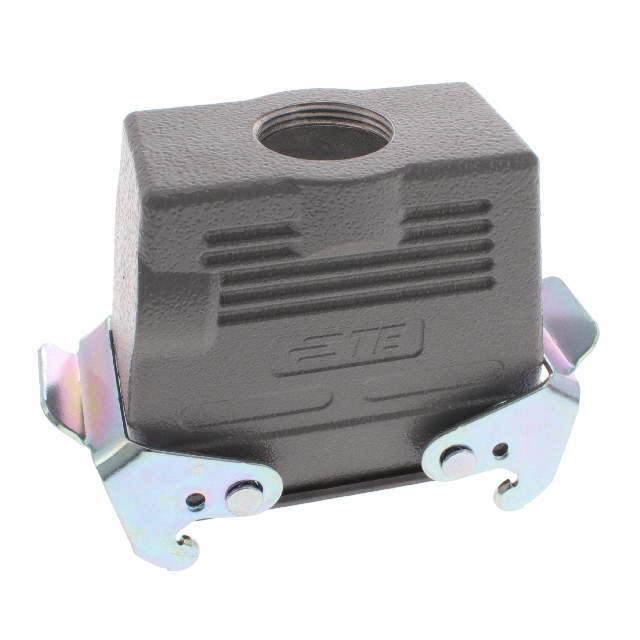

Hood - Coupling Connector Bottom Entry PG21 H16B IP65 - Dust Tight, Water Resistant
