SSA-LXB525ID

Active

Lumex Opto/Components Inc.

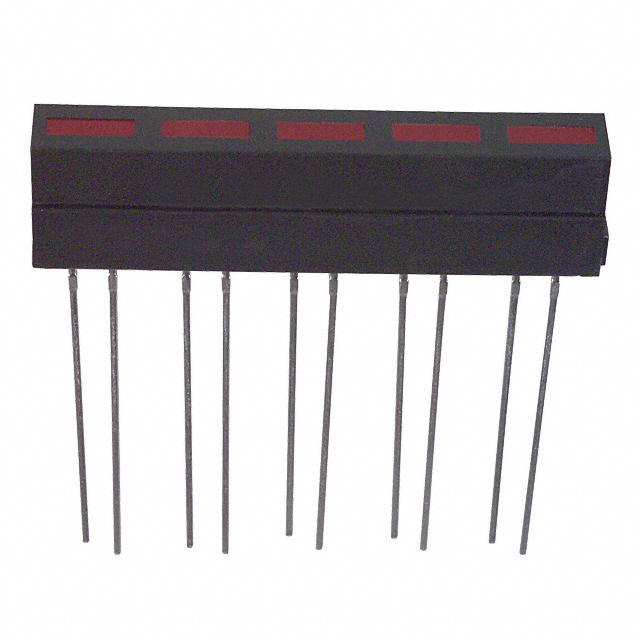

LED CBI 5.3X1.8MM 5-SEG RED VERT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.48
		10	$ 2.46
		210	$ 2.02
		630	$ 1.70
		1050	$ 1.56
		2100	$ 1.49
		5040	$ 1.46

Description

General part information

SSA-LXB525 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 5 Wide, SIP Red (x 5) Diffused, Tinted 2V 30mA Rectangle with Flat Top 5.30mm x 1.80mm Through Hole

Documents

Technical documentation and resources

No documents available

Specification	SSA-LXB525ID	SSA-LXB525 Series

Color	Red (x 5)	Red (x 5), Green (x 5), Green, Orange, Yellow (x 5)
Configuration	Bar, SIP	Bar, SIP
Configuration [custom]	5	5
Current	30 mA	25 - 30 mA
Current	-	20 mA
Current	-	20 mA
Lens Size [x]	5.3 mm	5.3 mm
Lens Size [y]	1.8 mm	1.8 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Type	Tinted, Diffused	Tinted, Diffused, Green
Millicandela Rating	12 mcd	5 - 12 mcd
Mounting Type	Through Hole	Through Hole
Viewing Angle	110 °	110 °
Voltage Rating	2 V	2 - 2.2 V
Wavelength - Peak	635 nm	565 - 635 nm

Part	Color	Lens Type	Voltage Rating	Lens Style	Wavelength - Peak	Configuration	Configuration [custom]	Millicandela Rating	Current	Mounting Type	Viewing Angle	Lens Size [x]	Lens Size [y]	Current [custom]	Current [custom]
Lumex Opto/Components Inc. SSA-LXB525ID	Red (x 5)	Diffused, Tinted	2 V	Rectangle with Flat Top	635 nm	Bar, SIP	5	12 mcd	30 mA	Through Hole	110 °	5.3 mm	1.8 mm
Lumex Opto/Components Inc. SSA-LXB525GD-10	Green (x 5)	Diffused, Green		Rectangle with Flat Top	565 nm	Bar, SIP	5	5 mcd		Through Hole	110 °	5.3 mm	1.8 mm
Lumex Opto/Components Inc. SSA-LXB525G4O1D-10	Green, Orange	Diffused	2 V, 2.2 V	Rectangle with Flat Top	565 nm, 630 nm	Bar, SIP	5	5 mcd, 5 mcd		Through Hole	110 °	5.3 mm	1.8 mm	20 mA	20 mA
Lumex Opto/Components Inc. SSA-LXB525YD	Yellow (x 5)	Diffused, Tinted	2 V	Rectangle with Flat Top	585 nm	Bar, SIP	5	10 mcd	30 mA	Through Hole	110 °	5.3 mm	1.8 mm
Lumex Opto/Components Inc. SSA-LXB525GD	Green (x 5)	Diffused, Tinted		Rectangle with Flat Top	565 nm	Bar, SIP	5	10 mcd	25 mA	Through Hole	110 °	5.3 mm	1.8 mm
