810M1-0100X
ObsoleteTE Connectivity Measurement Specialties

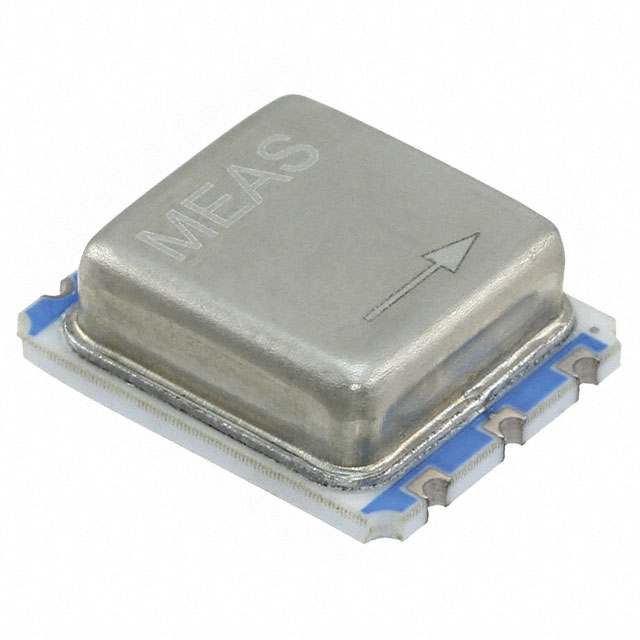

ACCELEROMETER 100G IEPE 5SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
810M1-0100X
ObsoleteTE Connectivity Measurement Specialties
ACCELEROMETER 100G IEPE 5SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 810M1-0100X |
|---|---|
| Acceleration Range [Max] | 100 g |
| Acceleration Range [Min] | -100 g |
| Axis [x] | X |
| Bandwidth | 6 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | IEPE |
| Package / Case | 5-SMD |
| Sensitivity (mV/g) | 12.5 mV/g |
| Supplier Device Package | 5-SMD |
| Type | Analog |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
810M1 Series
Accelerometer X Axis ±100g 6kHz 5-SMD
