70F-110-20-PB

Active

3M (TC)

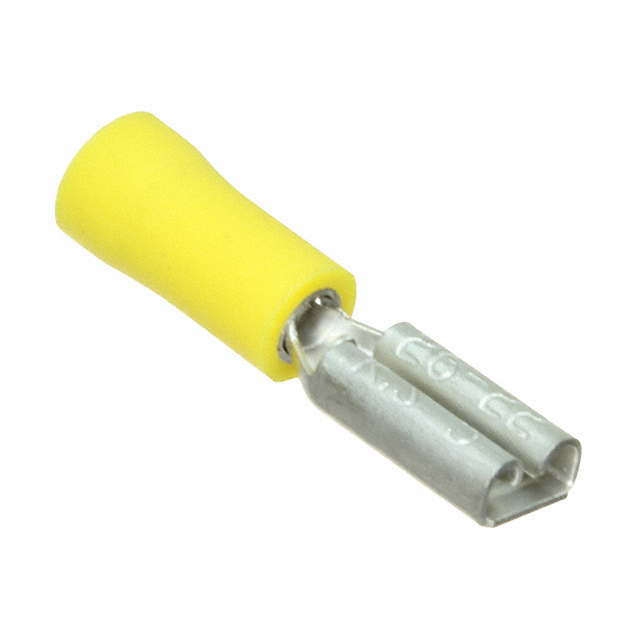

VINYL INSULATED WITH INSULATION GRIP FEMALE DISCONNECT, 26-24 AWG

Search across all available documentation for this part.

Active

3M (TC)

VINYL INSULATED WITH INSULATION GRIP FEMALE DISCONNECT, 26-24 AWG

Technical Specifications

Parameters and characteristics for this part

Specification	70F-110-20-PB

Contact Finish	Tin
Contact Material	Brass
Features	Butted Seam
Gender	Female
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	0.075 "
Insulation Diameter [diameter]	1.91 mm
Length - Overall [x]	0.63 "
Length - Overall [x]	16 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	2.79 mm
Tab Width	0.11 "
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Termination	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Contact Finish	Tab Width	Tab Width	Gender	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Mounting Type	Insulation	Terminal Type	Features
3M (TC) 70F-110-20-PB	22 AWG	26 AWG	Brass	Crimp	0.02 "	0.51 mm	0.63 "	16 mm	Tin	2.79 mm	0.11 "	Female	0.075 "	1.91 mm	Free Hanging (In-Line)	Non-Mating End Insulated	Standard	Butted Seam

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.110" (2.79mm) Quick Connect Female 22-26 AWG Crimp Connector Non-Mating End Insulated
