Technical Specifications
Parameters and characteristics for this part
| Specification | STLDC08PUR |
|---|---|
| Applications | Lighting |
| Dimming | PWM |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

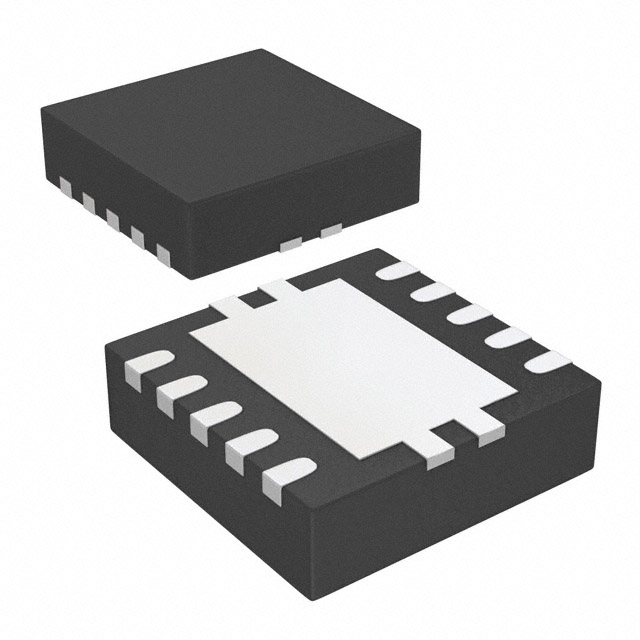

| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| Topology | Step-Up (Boost) |
| Type | DC DC Controller |
| Voltage - Supply (Max) [Max] | 3.6 V |
| Voltage - Supply (Min) [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.83 | |
| 10 | $ 2.54 | |||
| 25 | $ 2.40 | |||
| 100 | $ 2.08 | |||
| 250 | $ 1.98 | |||
| 500 | $ 1.77 | |||
| 1000 | $ 1.50 | |||
| Digi-Reel® | 1 | $ 2.83 | ||
| 10 | $ 2.54 | |||
| 25 | $ 2.40 | |||
| 100 | $ 2.08 | |||
| 250 | $ 1.98 | |||
| 500 | $ 1.77 | |||
| 1000 | $ 1.50 | |||
| Tape & Reel (TR) | 3000 | $ 0.90 | ||
| 6000 | $ 0.86 | |||
| 9000 | $ 0.84 | |||
Description
General part information
STLDC08 Series
The STLDC08 LED driver step-up controller is optimized to operate from one or two NiCd/NiMH or alkaline cells. The IC is able to drive an external MOSFET (N-channel) enabling it for use with wide power levels. Hysteretic control eliminates the need for small signal control loop compensation. The IC integrates an FET driver for a precise PWM dimming. STLDC08 comes in a DFN10 (3 x 3 mm) package.
Documents
Technical documentation and resources
