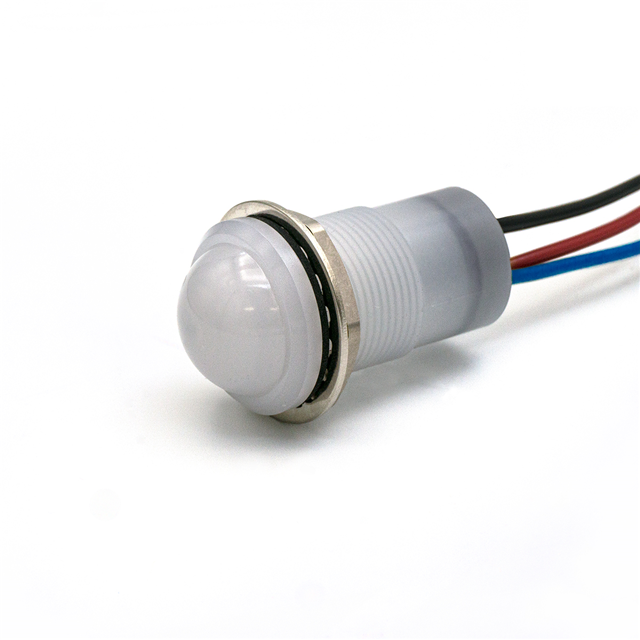

657-2425-303F

Active

DIALIGHT

PMI, DOME, BR, 10-30VDC

Search across all available documentation for this part.

Active

DIALIGHT

PMI, DOME, BR, 10-30VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

PMI, DOME, BR, 10-30VDC

Part	Panel Cutout Shape	Lens Style	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Lamp Color	Lens Transparency	Voltage [Max]	Voltage [Min]	Lens Color	Lens Size [diameter]	Millicandela Rating [custom]	Millicandela Rating [custom]	Ingress Protection	Millicandela Rating [custom]	Millicandela Rating
DIALIGHT 657-2425-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Blue, Red	Diffused	30 V	10 V	White	16.5 mm Dia	255 mcd	90 mcd	IP67, NEMA 4X
DIALIGHT 657-2485-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Blue, Green, Red	Diffused	30 V	10 V	White	16.5 mm Dia	255 mcd	90 mcd	IP67, NEMA 4X	500 mcd
DIALIGHT 657-2495-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Green, Red, Yellow	Diffused	30 V	10 V	White	16.5 mm Dia			IP67, NEMA 4X		255 mcd, 260 mcd, 500 mcd
DIALIGHT 657-2455-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Red, Yellow	Diffused	30 V	10 V	White	16.5 mm Dia	255 mcd		IP67, NEMA 4X	260 mcd
DIALIGHT 657-2415-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Green, Red	Diffused	30 V	10 V	White	16.5 mm Dia	255 mcd		IP67, NEMA 4X	500 mcd
DIALIGHT 657-2435-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Green, Yellow	Diffused	30 V	10 V	White	16.5 mm Dia			IP67, NEMA 4X		260 mcd, 500 mcd
DIALIGHT 657-2465-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Blue, Green	Diffused	30 V	10 V	White	16.5 mm Dia			IP67, NEMA 4X		90 mcd, 500 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Blue, Red Diffused 10V ~ 30V 20mA Wire Leads - 6" (152.40mm)
