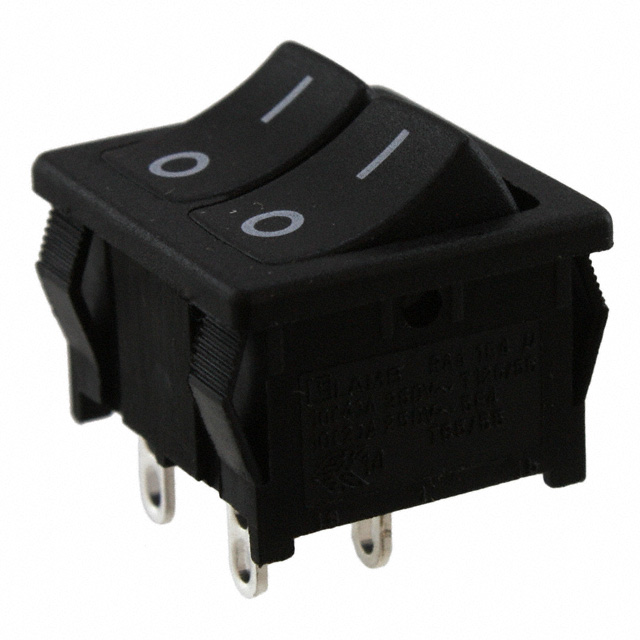

RA22131121

Active

E-Switch

SWITCH ROCKER SPSTX2 10A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER SPSTX2 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RA22131121

Actuator Marking	O -
Actuator Type	Concave (Curved), Dual
Approval Agency	UL, VDE, cUL
Circuit	SPST x 2
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	10000 Cycles
Ingress Protection	IP54 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	22 mm
Panel Cutout Dimensions [y]	19.2 mm
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Current Rating (Amps)	Electrical Life	Switch Function	Actuator Marking	Ingress Protection	Approval Agency	Mounting Type	Circuit	Termination Style	Color - Actuator/Cap	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
E-Switch RA22131121	Concave (Curved) Dual	-20 C	105 ░C	125 V	10 A	10000 Cycles	On-Off	O -	IP54 - Dust Protected Water Resistant	cUL UL VDE	Panel Mount Snap-In	SPST x 2	Solder Lug	Black	19.2 mm	22 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST x 2 10A (AC) 125 V Panel Mount, Snap-In
