VCC1-1537-114M285000

Technical Specifications

Parameters and characteristics for this part

Specification	VCC1-1537-114M285000

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	30 ÁA
Frequency	114.285 MHz
Frequency Stability	25 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	1.9 mm
Height - Seated (Max) [Max] [z]	0.075 in
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	CMOS
Package / Case	4-SMD, No Lead
Size / Dimension [x]	7 mm
Size / Dimension [x]	0.276 "
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Type	XO (Standard)
Voltage - Supply	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

VCC1-1537-114M285000

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Voltage - Supply	Output	Function	Base Resonator	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency Stability	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Supply (Disable) (Max) [Max]	Package / Case	Frequency
Microchip Technology VCC1-1537-114M285000	1.9 mm	0.075 in	XO (Standard)	3.3 V	CMOS	Enable/Disable	Crystal	7 mm	5 mm	0.276 "	0.197 "	25 ppm	85 °C	-40 °C	Surface Mount	30 ÁA	4-SMD, No Lead	114.285 MHz

General part information

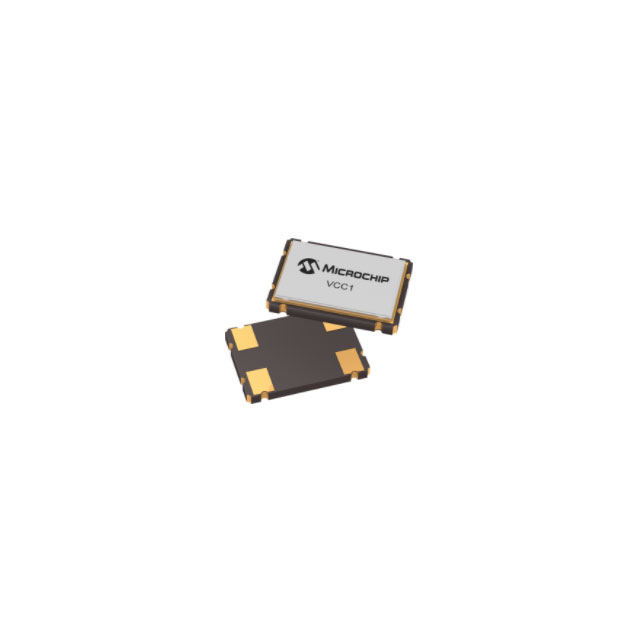

114.285 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
