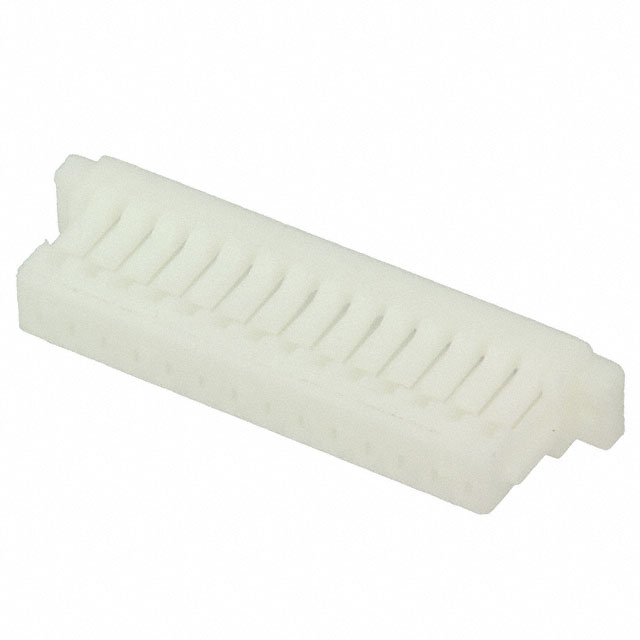

M40-1101400

Active

Harwin Inc.

BOARD CONNECTOR, 14 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.039 INCH PITCH, CRIMP TERMINAL, LOCKING, PLUG

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 14 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.039 INCH PITCH, CRIMP TERMINAL, LOCKING, PLUG

Technical Specifications

Parameters and characteristics for this part

Part	Note	Color	Number of Rows	Mounting Type	Number of Positions	Fastening Type	Contact Termination	Connector Type	Contact Type	Pitch [x]	Pitch [x]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]
Harwin Inc. M40-1101200	Contacts Not Included	White	1	Free Hanging (In-Line)	12	Latch Holder	Crimp	Receptacle	Female Socket	0.039 in	1 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C
Harwin Inc. M40-1100600	Contacts Not Included	White	1	Free Hanging (In-Line)	6	Latch Holder	Crimp	Receptacle	Female Socket	0.039 in	1 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C
Harwin Inc. M40-1100400	Contacts Not Included	White	1	Free Hanging (In-Line)	4	Latch Holder	Crimp	Receptacle	Female Socket	0.039 in	1 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C
Harwin Inc. M40-1101400	Contacts Not Included	White	1	Free Hanging (In-Line)	14	Latch Holder	Crimp	Receptacle	Female Socket	0.039 in	1 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C
Harwin Inc. M40-1100500	Contacts Not Included	White	1	Free Hanging (In-Line)		Latch Holder	Crimp	Receptacle	Female Socket	0.039 in	1 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C
Harwin Inc. M40-1101000	Contacts Not Included	White	1	Free Hanging (In-Line)	10	Latch Holder	Crimp	Receptacle	Female Socket	0.039 in	1 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.31

General part information

14 Rectangular Connectors - Housings Receptacle White 0.039" (1.00mm)
