STOD14PUR
ObsoleteSTMicroelectronics
IC REG AMOLED DISPLAY 2OUT 12DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STOD14PUR
ObsoleteSTMicroelectronics
IC REG AMOLED DISPLAY 2OUT 12DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STOD14PUR |
|---|---|
| Applications | AMOLED Display, Converter |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

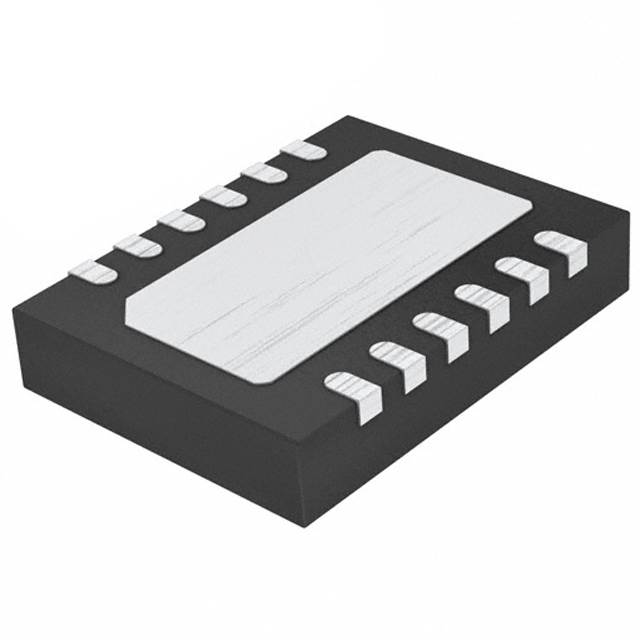

| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (4x4) |
| Voltage - Input [Max] | 13 V |
| Voltage - Input [Min] | 6 V |
| Voltage - Output | 4.6 V |
| Voltage - Output [Max] | -6 V |
| Voltage - Output [Min] | -2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.83 | |
| 10 | $ 2.54 | |||
| 25 | $ 2.40 | |||
| 100 | $ 2.04 | |||
| 250 | $ 1.92 | |||
| 500 | $ 1.68 | |||
| 1000 | $ 1.39 | |||
| Tape & Reel (TR) | 3000 | $ 1.30 | ||
| 6000 | $ 1.25 | |||
Description
General part information
STOD14 Series
- Converter, AMOLED Display Voltage Regulator IC 2 Output 12-DFN (4x4)
