2908500

Active

Phoenix Contact

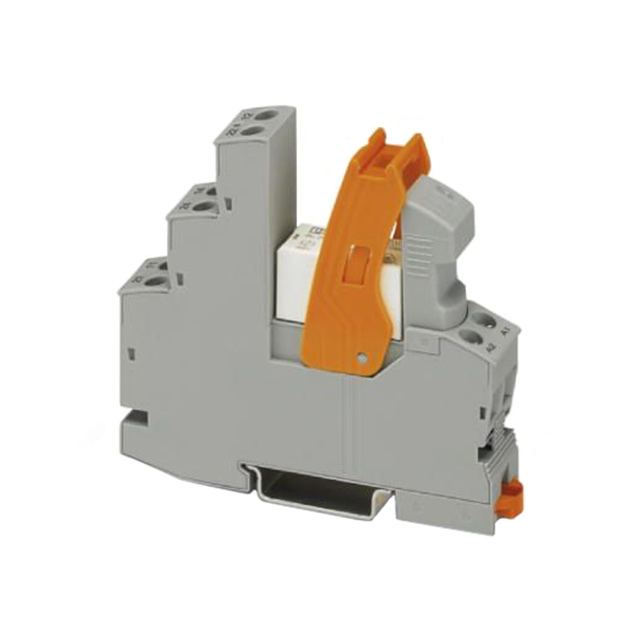

RELAY GEN PURPOSE SPDT 11A 12V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 11A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2908500	29085 Series

Approval Agency	EAC, DNV	EAC, DNV
Coil Current	33 mA	33 mA
Coil Resistance	364 Ohms	364 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	11 A	11 A
Features	Socket Included, Diode, Lighted Indicator	Socket Included, Diode, Lighted Indicator
Ingress Protection	-	IP51 - Dust Protected
Measuring Range	-	0 - 184 VAC
Measuring Range	-	5 - 500 A
Measuring Type	-	Current (3-Phase), Wattage, Voltage
Mounting Type	DIN Rail	DIN Rail
Operate Time	8 ms	8 ms
Operating Temperature [Max]	70 °C	55 - 70 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	10 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Screw Terminal	Screw Terminal
Type	-	Energy Monitor

EEM-EM375

Part	Mounting Type	Ingress Protection	Type	Measuring Range [Min]	Measuring Range [Max]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Measuring Type	Contact Form	Coil Resistance	Coil Current	Contact Rating (Current)	Approval Agency	Contact Material	Operate Time	Relay Type	Release Time	Switching Voltage	Features	Coil Voltage	Coil Type
Phoenix Contact 2908581	DIN Rail	IP51 - Dust Protected	Energy Monitor	0 A, 184 VAC	5 A, 500 VAC	Screw Terminal	55 °C	-25 °C	Current (3-Phase), Voltage, Wattage
Phoenix Contact 2908500	DIN Rail					Screw Terminal	70 °C	-40 °C		SPDT (1 Form C)	364 Ohms	33 mA	11 A	DNV, EAC	Silver Nickel (AgNi)	8 ms	General Purpose	10 ms	250 VAC, 250 VDC	Diode, Lighted Indicator, Socket Included	12 VDC	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.58

General part information

General Purpose Relay SPDT (1 Form C) 12VDC Coil DIN Rail
