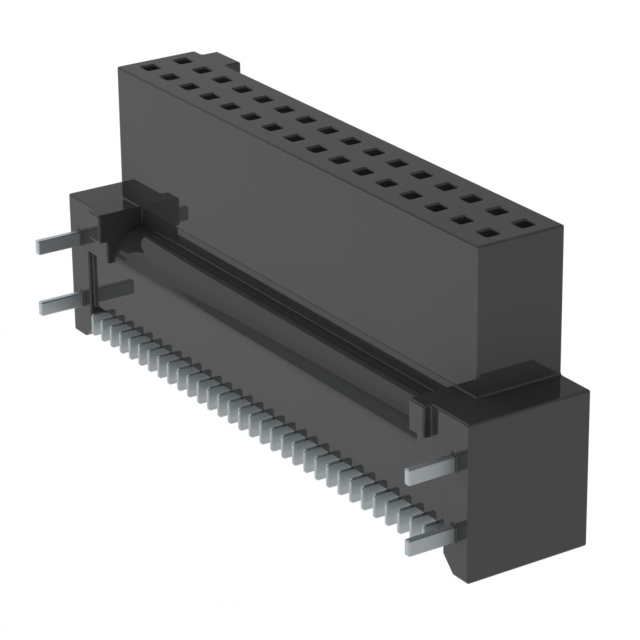

SFM-116-02-S-DH-TR

Active

Samtec Inc.

CONN RCPT 32P 0.05 GOLD SMD R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFM-116-02-S-DH-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	4.65 mm
Insulation Height	0.183 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFM-116 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Rows	Insulation Height	Insulation Height	Features	Contact Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Fastening Type	Mated Stacking Heights	Insulation Color	Contact Finish - Post	Number of Positions Loaded	Style	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Shape	Material Flammability Rating	Insulation Material	Connector Type	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. SFM-116-L2-L-D-A	10 çin	0.25 çm	Solder	2	0.185 in	4.7 mm	Board Guide	Female Socket	250 VAC	0.05 in	1.27 mm	Gold	Push-Pull	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Black	Tin	All	Board to Board Cable	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	Beryllium Copper	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Receptacle	3.2 A
Samtec Inc. SFM-116-02-L-D	10 çin	0.25 çm	Solder	2	0.185 in	4.7 mm		Female Socket	250 VAC	0.05 in	1.27 mm	Gold	Push-Pull	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Black	Tin	All	Board to Board Cable	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	Beryllium Copper	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Receptacle	3.2 A
Samtec Inc. SFM-116-02-S-D-K	30 Áin	0.76 Ám	Solder	2	0.185 in	4.7 mm	Pick and Place	Female Socket	250 VAC	0.05 in	1.27 mm	Gold	Push-Pull	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Black	Tin	All	Board to Board Cable	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	Beryllium Copper	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Receptacle	3.2 A
Samtec Inc. SFM-116-L2-S-D-A-N	30 Áin	0.76 Ám	Solder	2	0.185 in	4.7 mm	Board Guide	Female Socket	250 VAC	0.05 in	1.27 mm	Gold	Push-Pull	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Black	Tin	All	Board to Board Cable	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	Beryllium Copper	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Receptacle	3.2 A
Samtec Inc. SFM-116-02-S-DH-TR	30 Áin	0.76 Ám	Solder	2	0.183 in	4.65 mm	Board Guide	Female Socket	250 VAC	0.05 in	1.27 mm	Gold	Push-Pull		Black	Tin	All	Board to Board Cable	0.05 in	1.27 mm	Surface Mount Right Angle	-55 °C	125 °C	Beryllium Copper	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Receptacle	3.2 A
Samtec Inc. SFM-116-01-L-D-LC	10 çin	0.25 çm	Solder	2	0.18 "	4.57 mm		Female Socket	250 VAC	0.05 in	1.27 mm	Gold	Push-Pull	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	Black	Tin	All	Board to Board Cable	0.05 in	1.27 mm	Through Hole	-55 °C	125 °C	Beryllium Copper	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Receptacle	3.2 A	0.12 in	3.05 mm
Samtec Inc. SFM-116-T2-L-D-A-K-TR	10 çin	0.25 çm	Solder	2	0.185 in	4.7 mm	Board Guide Pick and Place	Female Socket	250 VAC	0.05 in	1.27 mm	Gold	Push-Pull	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Black	Tin	All	Board to Board Cable	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	Beryllium Copper	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Receptacle	3.2 A
Samtec Inc. SFM-116-03-S-D	30 Áin	0.76 Ám	Solder	2	0.18 "	4.57 mm		Female Socket	250 VAC	0.05 in	1.27 mm	Gold	Push-Pull	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	Black	Tin	All	Board to Board Cable	0.05 in	1.27 mm	Through Hole	-55 °C	125 °C	Beryllium Copper	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Receptacle	3.2 A	0.075 in		1.91 mm
Samtec Inc. SFM-116-01-L-S	10 çin	0.25 çm	Solder	1	0.18 "	4.57 mm		Female Socket	250 VAC	0.05 in	1.27 mm	Gold	Push-Pull	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	Black	Tin	All	Board to Board Cable			Through Hole	-55 °C	125 °C	Beryllium Copper	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Receptacle	3.2 A	0.12 in	3.05 mm		16
Samtec Inc. SFM-116-02-H-D-A	30 Áin	0.76 Ám	Solder	2	0.185 in	4.7 mm	Board Guide	Female Socket	250 VAC	0.05 in	1.27 mm	Gold	Push-Pull	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Black	Gold	All	Board to Board Cable	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	Beryllium Copper	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Receptacle	3.2 A					3 µin	0.076 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SFM-116 Series

32 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold

Documents

Technical documentation and resources

No documents available
