SLKD-16FGMS-GCP-227

Active

Amphenol LTW

FLOS+ FIELD INSTALLABLE D SERIES

Search across all available documentation for this part.

Active

Amphenol LTW

FLOS+ FIELD INSTALLABLE D SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Shell Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Features	Ingress Protection	Orientation	Contact Finish - Mating	Shell Size - Insert	Mounting Type	Connector Type	Shielding	Contact Material	Number of Positions	Insert Material	Fastening Type	Color	Mounting Feature
Amphenol LTW SLKD-16FGMS-GCP-227	Metal	0.303 in	0.343 in	8.7 mm	7.7 mm	Backshell	IPX8 - Waterproof	G	Gold	D	Free Hanging (In-Line)	Male Pins Plug	Unshielded	Copper Alloy	16	Thermoplastic	Detent Lock Push-Pull	Silver
Amphenol LTW SLKD-16EGFS-GCP-001	Metal						IPX8 - Waterproof	G	Gold	D		Receptacle Female Sockets	Unshielded	Copper Alloy	16	Thermoplastic	Detent Lock Push-Pull	Silver	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 35.84

General part information

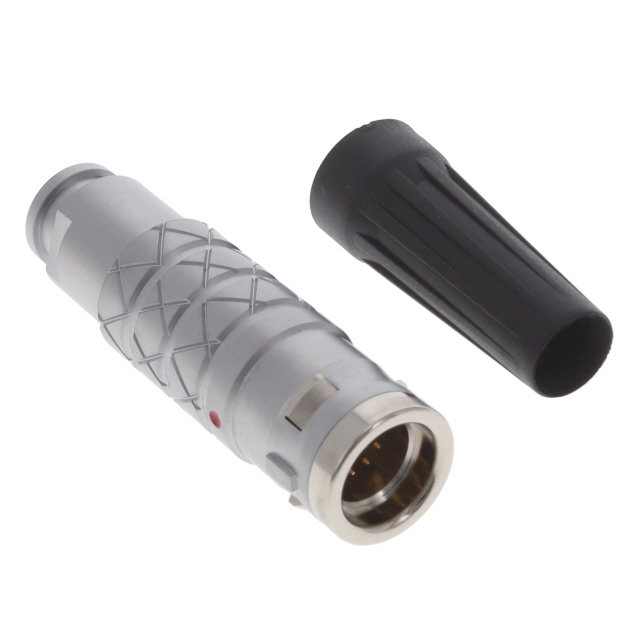

16 Position Circular Connector Plug, Male Pins Solder Cup

Technical documentation and resources
