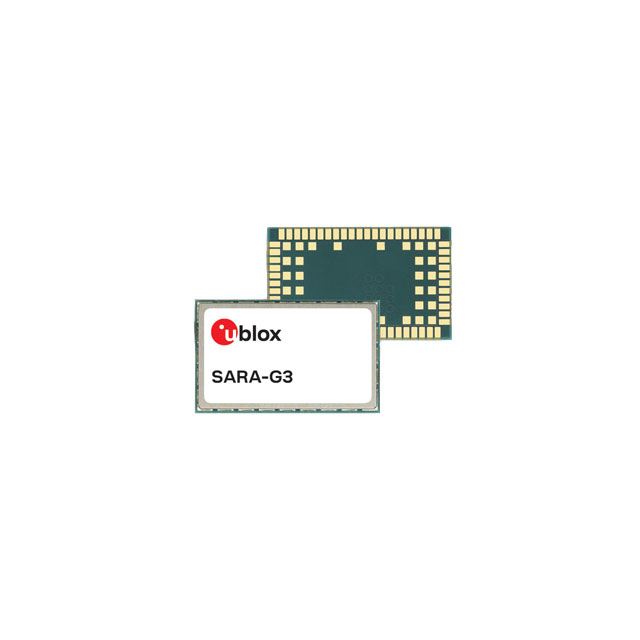

SARA-G350-02X

Obsolete

u-blox

RF TXRX MOD CELL NAV CAST SMD

Search across all available documentation for this part.

Obsolete

u-blox

RF TXRX MOD CELL NAV CAST SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SARA-G350-02X

Antenna Type	Antenna Not Included, Castellation
Current - Receiving	300 mA
Current - Transmitting	300 mA
Data Rate	9.6 kbps
Frequency	1900 MHz, 1800 MHz, 900 MHz, 850 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	96-SMD Module
Power - Output	32.2 dBm
Protocol	GSM, GPRS
RF Family/Standard	Cellular, Navigation
Sensitivity	-109 dBm
Serial Interfaces	UART, SPI, USB, I2C
Voltage - Supply	3.8 V

RF TXRX MOD CELL NAV CAST SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Mounting Type	Current - Transmitting	Voltage - Supply	Package / Case	Data Rate	Frequency	RF Family/Standard	Protocol	Current - Receiving	Power - Output	Sensitivity	Serial Interfaces
u-blox SARA-G350-02X	85 °C	-40 °C	Antenna Not Included, Castellation	Surface Mount	300 mA	3.8 V	96-SMD Module	9.6 kbps	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Cellular, Navigation	GPRS, GSM	300 mA	32.2 dBm	-109 dBm	I2C, SPI, UART, USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular, Navigation GPRS, GSM Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included, Castellation Surface Mount
