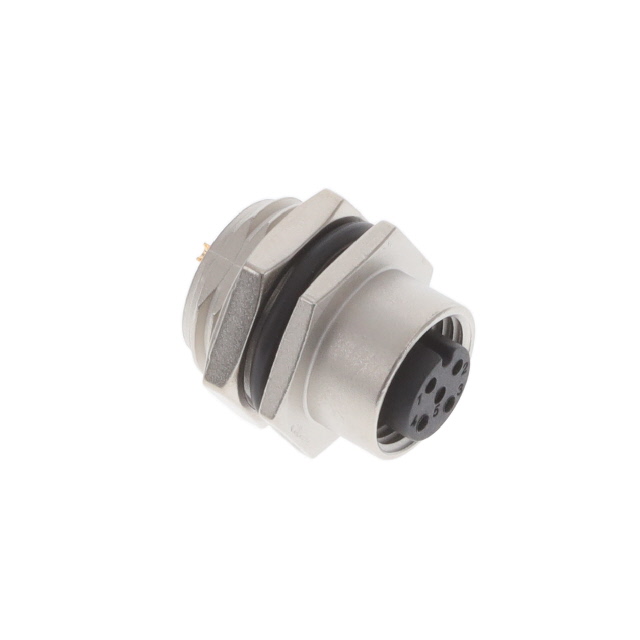

M12A-04PFFS-SH8002

Active

Amphenol LTW

SENSOR CONN, M12, RCPT, 4POS, PANEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

SENSOR CONN, M12, RCPT, 4POS, PANEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-04PFFS-SH8002

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Shielded
Voltage Rating	250 VAC

Part	Ingress Protection	Orientation	Number of Positions	Mounting Type	Shielding	Primary Material	Shell Material	Shell Size - Insert	Current Rating (Amps)	Contact Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Voltage Rating	Mounting Feature	Connector Type	Insert Material	Color
Amphenol LTW M12A-04PFFS-SH8002	IP68 IP69K	A	4	Panel Mount Through Hole	Shielded	Metal	Zinc Alloy	M12-4	4 A	Copper Alloy	Gold	-40 °C	105 ░C	Nickel	250 VAC	Bulkhead - Rear Side Nut	Receptacle Female Sockets	Polyamide (PA) Nylon Glass Filled	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
