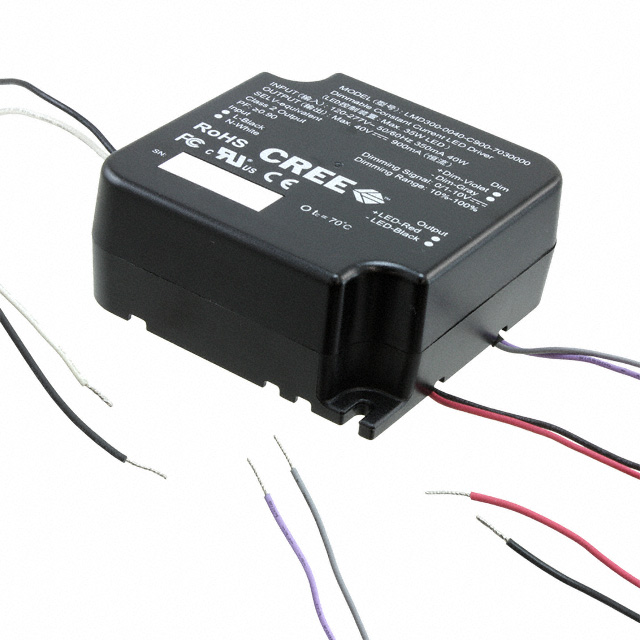

LMD300-0040-C900-7030000

Obsolete

Cree LED

LED DRIVER CC AC/DC 40V 900MA

Search across all available documentation for this part.

Obsolete

Cree LED

LED DRIVER CC AC/DC 40V 900MA

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Topology	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Dimming	Voltage - Input (Max) [Max]	Approval Agency	Termination Style	Type	Ratings	Number of Outputs	Weight	Weight	Voltage - Output	For Use With/Related Products	Accessory Type
Cree LED LMD300-0040-C900-2030000	3.15 in	1.38 in	35 mm	80 mm	205 mm	8.07 in	AC DC Converter	207 VAC	86 %	900 mA	Chassis Mount	70 °C	0 °C	35 W	Analog	264 VAC	CE CQC cULus	Terminal Block	Constant Current	IP20 NEMA 410	1
Cree LED LMD300-0040-C900-7030000	3.54 in	1.48 "	37.5 mm	90 mm	90 mm	3.54 in	AC DC Converter	108 VAC	86 %	900 mA	Chassis Mount	70 °C	0 °C	36 W	Analog	305 VAC	CE CQC cULus	Wire Leads	Constant Current	IP20 NEMA 410	1	0.43 lb	195.04 g	40 V
Cree LED LMD300-CA00-0000-0000001																									LMH2 TrueWhite® LED Module	Cover

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

900mA 40V Constant Current LED Driver AC DC Converter Topology 1 Output
