M0534-3-SS-20

Active

RAF Electronic Hardware

6MM RD X 5MM X 3.2MM ID

Search across all available documentation for this part.

Active

RAF Electronic Hardware

6MM RD X 5MM X 3.2MM ID

Technical Specifications

Parameters and characteristics for this part

Part	Length - Overall [x]	Length - Overall [x]	Gender	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Threaded/Unthreaded	Between Board Height	Between Board Height	Screw, Thread Size	Plating	Color
RAF Electronic Hardware M0534-4-AL	5 mm	0.197 "	Female	Round Spacer	5.99 mm	0.236 in	Aluminum	4.29 mm	0.169 in	Unthreaded	0.197 in	5 mm
RAF Electronic Hardware M0534-4-SS	5 mm	0.197 "	Female	Round Spacer	5.99 mm	0.236 in	Stainless Steel	4.29 mm	0.169 in	Unthreaded	0.197 in	5 mm
RAF Electronic Hardware M0534-3-SS-20	5 mm	0.197 "	Female	Round Spacer	6 mm	0.236 in	Stainless Steel	3.2 mm	0.126 in	Unthreaded	0.197 in	5 mm	M3	Passivated
RAF Electronic Hardware M0534-3-S-12	5 mm	0.197 "	Female	Round Spacer	6 mm	0.236 in		3.2 mm	0.126 in	Unthreaded	0.197 in	5 mm	M3	Chromate Zinc	Clear
RAF Electronic Hardware M0534-3-AL	5 mm	0.197 "	Female	Round Spacer	5.99 mm	0.236 in	Aluminum	3.2 mm	0.126 in	Unthreaded	0.197 in	5 mm
RAF Electronic Hardware M0534-3-AL-22	5 mm	0.197 "	Female	Round Spacer	6 mm	0.236 in	Aluminum	3.2 mm	0.126 in	Unthreaded	0.197 in	5 mm	M3	Anodized	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

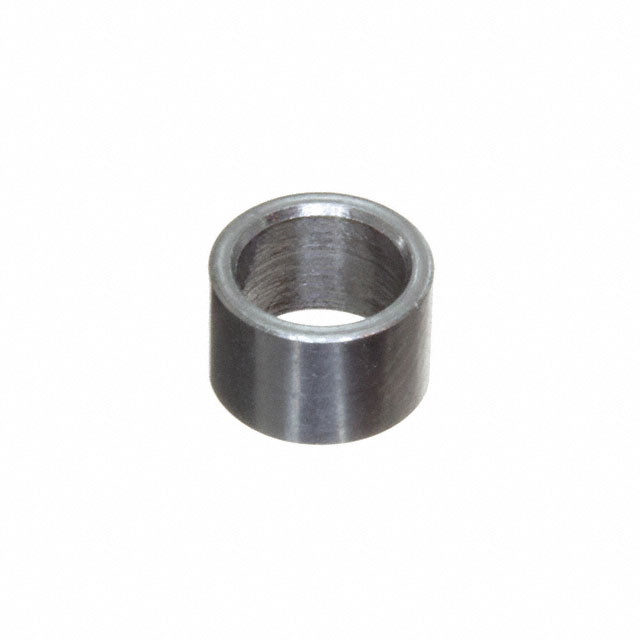

Round Spacer Unthreaded M3 Stainless Steel 0.197" (5.00mm)

Technical documentation and resources

No documents available
