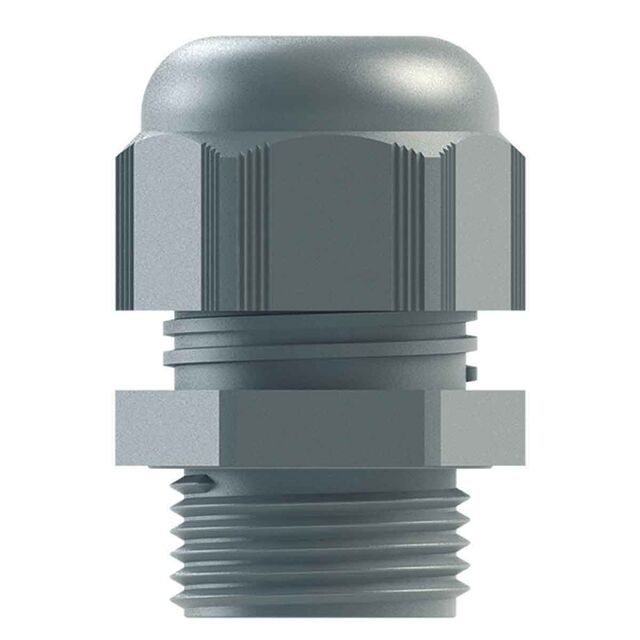

PNG-1/2R

Active

SAB North America

CABLE GLAND 5-9MM 1/2" NPT

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 5-9MM 1/2" NPT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PNG-1/2R	PNG-1 Series

Color	Gray	Gray
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	-	0.472 - 0.787 in
Outside Cable Diameter (Max)	-	14 mm
Outside Cable Diameter (Max)	-	0.551 "
Outside Cable Diameter (Max) [Max] [diameter]	9 mm	9 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.354 in	0.354 - 20 in
Outside Cable Diameter (Min)	-	6 - 12 mm
Outside Cable Diameter (Min)	-	0.236 - 0.472 in
Outside Cable Diameter (Min) [Min]	5 mm	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in	0.197 in
Panel Hole Size	0.84 in	0.84 in
Panel Hole Size	21.3 mm	21.3 mm
Panel Hole Size	-	1.315 in
Panel Hole Size	-	33.4 mm
Thread Length	0.591 in	0.433 - 0.709 in
Thread Length	15 mm	11 - 18.01 mm
Thread Size	1/2" NPT	1/2" NPT, 1" NPT
Type	Cable Gland	Cable Gland

CABLE GLAND 5-9MM 1/2" NPT

Part	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Color	Ingress Protection	Type	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Panel Hole Size [diameter]	Panel Hole Size [diameter]
SAB North America PNG-1/2R	0.591 in	15 mm	5 mm	0.197 in	Gray	IP68 - Dust Tight, Waterproof	Cable Gland	1/2" NPT	100 °C	-20 C	0.84 in	21.3 mm	9 mm	0.354 in
SAB North America PNG-1/2	0.591 in	15 mm			Gray	IP68 - Dust Tight, Waterproof	Cable Gland	1/2" NPT	100 °C	-20 C	0.84 in	21.3 mm		12 mm	0.472 in	6 mm	0.236 in
SAB North America PNG-1/2C	0.433 in	11 mm			Gray	IP68 - Dust Tight, Waterproof	Cable Gland	1/2" NPT	100 °C	-20 C	0.84 in	21.3 mm				10 mm	0.394 in	14 mm	0.551 "
SAB North America PNG-1R	0.709 in	18.01 mm			Gray	IP68 - Dust Tight, Waterproof	Cable Gland	1" NPT	100 °C	-20 C				20 mm	0.787 "	12 mm	0.472 in			1.315 in	33.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Gland Polyamide (PA6), Nylon 6 1/2" NPT Gray
