C5886.41.01
ActivePrysmian Group

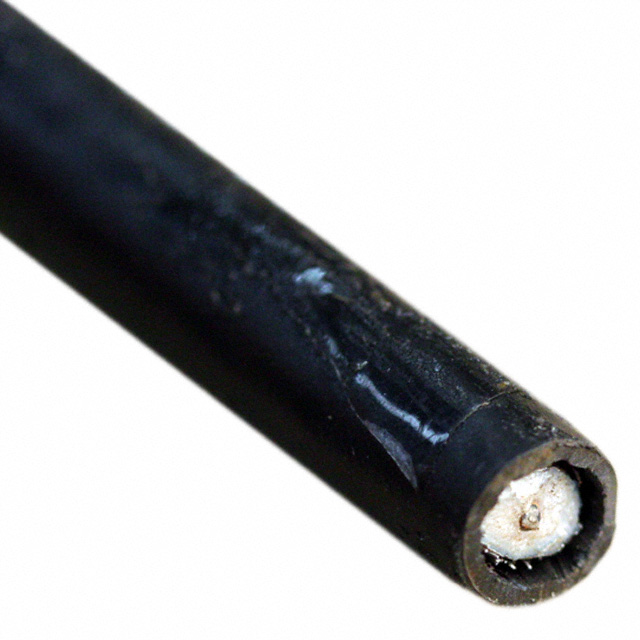

CABLE COAX RISER RG6 18AWG 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C5886.41.01 |
|---|---|
| Cable Group | RG-6 |
| Cable Type | Coaxial - Riser |
| Conductor Material | Steel, Copper Coated |
| Conductor Strand | Solid |
| Dielectric Diameter [diameter] | 4.5 mm |
| Dielectric Diameter [diameter] | 0.177 " |
| Dielectric Material | Solid Polyethylene (PE) |
| Impedance | 75 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.263 in |
| Jacket (Insulation) Diameter [diameter] | 6.68 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 304.8 m, 15.24 m |
| Length | 1000 ft, 50 ft |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Shield Coverage | 60%, 100% |
| Shield Material | Flexfoil®, Aluminum |
| Shield Type | Foil, Braid |
| Usage | CATV |
| VoP, Velocity of Propagation | 85 |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.08 | |
| 1 | $ 34.51 | |||
| 5 | $ 28.23 | |||
| 5 | $ 16.43 | |||
| 10 | $ 12.78 | |||
| 10 | $ 21.96 | |||
| Spool | 1000 | $ 0.60 | ||
Description
General part information
C5886 Series
Coaxial - Riser Cable 18 AWG (0.82mm²) RG-6 100.0' (30.48m) 75 Ohms
