MASW-007074-000100
ActiveMACOM Technology Solutions

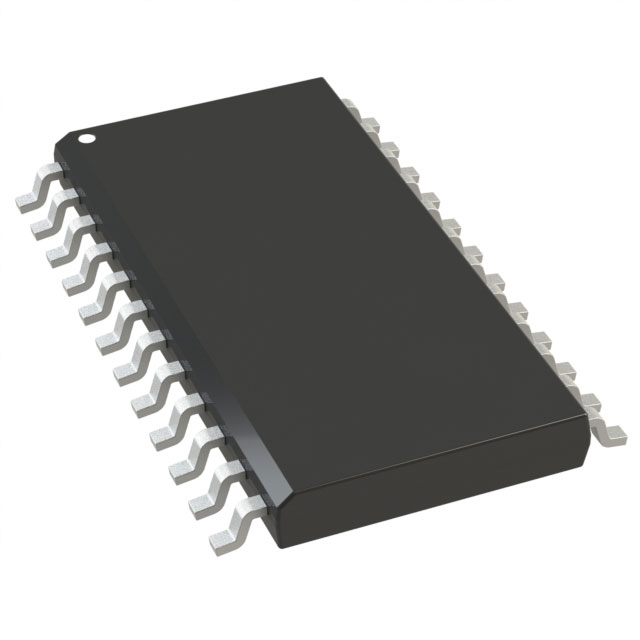

IC RF SWITCH SP3T 3GHZ 24SOIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MASW-007074-000100
ActiveMACOM Technology Solutions
IC RF SWITCH SP3T 3GHZ 24SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MASW-007074-000100 |
|---|---|
| Circuit | SP3T |
| Frequency Range [Max] | 3 GHz |
| Frequency Range [Min] | 0 Hz |
| IIP3 | 46 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 2 dB |
| Isolation | 32 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 27 dB |
| Package / Case | 24-SOIC |
| Package / Case [custom] | 7.5 mm |
| Package / Case [custom] | 0.295 in |
| RF Type | General Purpose |
| Supplier Device Package | 24-SOIC |
| Test Frequency | 3 GHz |
| Topology | Absorptive |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 29.12 | |
| 10 | $ 28.64 | |||
Description
General part information
MASW-007074 Series
RF Switch IC General Purpose SP3T 50Ohm 24-SOIC
