LTM8029MPY

Active

Analog Devices

36VIN, 600MA STEP-DOWN ΜMODULE (POWER MODULE) CONVERTER WITH 5ΜA QUIESCENT CURRENT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR598 Reliability Data Datasheet

LTM8029MPY

Active

Analog Devices

36VIN, 600MA STEP-DOWN ΜMODULE (POWER MODULE) CONVERTER WITH 5ΜA QUIESCENT CURRENT

Deep-Dive with AI

DocumentsR598 Reliability Data Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTM8029MPY

Applications	ITE (Commercial)
Current - Output (Max) [Max]	600 mA
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

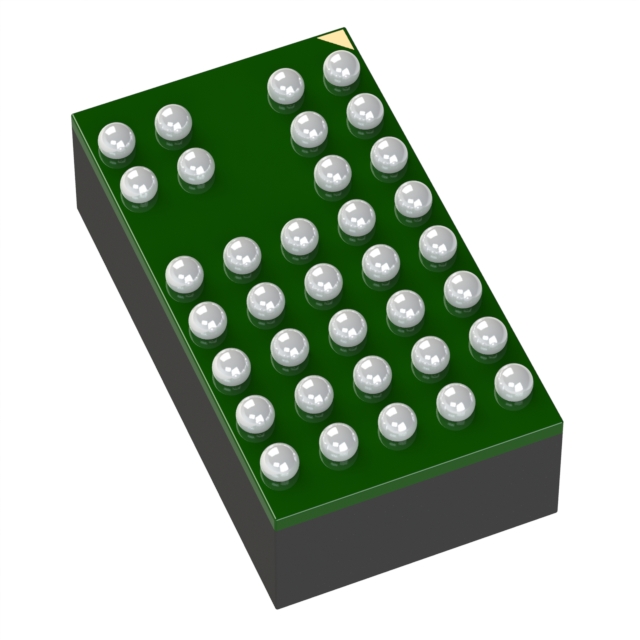

Package / Case	35-BBGA Module
Size / Dimension [x]	11.3 mm
Size / Dimension [x]	0.44 "
Size / Dimension [y]	0.25 in
Size / Dimension [y]	6.3 mm
Size / Dimension [z]	3.4 mm
Size / Dimension [z]	0.13 in
Supplier Device Package	35-BGA
Supplier Device Package [x]	11.25
Supplier Device Package [y]	6.25
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	18 V
Voltage - Output 1 [Min]	1.2 V

LTM8029 Series

36VIN, 600mA Step-Down μModule (Power Module) Converter with 5μA Quiescent Current

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Package / Case	Type	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Input (Max) [Max]
Analog Devices LTM8029MPY	3.4 mm	11.3 mm	0.25 in	6.3 mm	0.44 "	0.13 in	ITE (Commercial)	6.25	35-BGA	11.25	1	-55 °C	125 °C	600 mA	18 V	1.2 V	35-BBGA Module	Non-Isolated PoL Module	4.5 V	Surface Mount	36 V
Analog Devices LTM8029IY#PBF	3.4 mm	11.3 mm	0.25 in	6.3 mm	0.44 "	0.13 in	ITE (Commercial)	6.25	35-BGA	11.25	1	-40 °C	125 °C	600 mA	18 V	1.2 V	35-BBGA Module	Non-Isolated PoL Module	4.5 V	Surface Mount	36 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 23.99

Description

General part information

LTM8029 Series

The LTM8029 is a 36VIN, 600mA step-down µModule®converter with 5µA quiescent current. It is an adjustable frequency buck switching regulator that consumes only 5μA of quiescent current. The LTM8029 can accept an input as high as 36VINand operates at low input voltages due to its off-time skipping capability. Burst Mode operation maintains high efficiency at low output currents while keeping the output ripple low. The RUN pin features an accurate threshold and the shutdown current is 0.9μA. A power good flag signals when VOUTreaches 90% of the programmed output voltage.The LTM8029 is packaged in a thermally enhanced, compact (11.25mm × 6.25mm) and low profile (3.42mm) overmolded ball grid array (BGA) package. The LTM8029 is available with SnPb (BGA) or RoHS compliant terminal finish.ApplicationsAutomotive Battery RegulationPower for Portable ProductsDistributed Supply RegulationIndustrial SuppliesWall Transformer Regulation
