1.15108.9820000

Obsolete

RAFI USA

SWITCH PUSHBUTTON 4PST 4A 250V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH PUSHBUTTON 4PST 4A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.15108.9820000	1.15.108 Series

	-	-
Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round, Square
Circuit	4PST-2NO/2NC	DPST-NO/NC, 4PST-2NO/2NC, 6PST-3NO/3NC
Current Rating (Amps)	4 A, 200 mA	4 - 200 A
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant, IP40
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm	16.2 mm
Switch Function	On-Off, Off-On	On-Off, Off-On, Off-Mom, On-Mom
Termination Style	Solder Lug	Solder Lug
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	230 V	230 V

LUMOTAST 75 IP65 PUSHBUTTON ROUN

Part	Switch Function	Termination Style	Circuit	Type	Mounting Type	Voltage Rating - AC	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Type	Ingress Protection	Panel Cutout Dimensions [diameter]	Voltage Rating - DC
RAFI USA 1.15108.9810000	Off-On, On-Off	Solder Lug	DPST-NO/NC	Illuminated, Standard	Panel Mount, Front	250 V	No Marking	70 °C	-25 °C	4 A, 200 mA	Button, Flush, Round	IP65 - Dust Tight, Water Resistant	16.2 mm	230 V
RAFI USA 1.15108.9820000	Off-On, On-Off	Solder Lug	4PST-2NO/2NC	Illuminated, Standard	Panel Mount, Front	250 V	No Marking	70 °C	-25 °C	4 A, 200 mA	Button, Flush, Round	IP65 - Dust Tight, Water Resistant	16.2 mm	230 V
RAFI USA 1.15108.4810000	Off-Mom, On-Mom	Solder Lug	DPST-NO/NC	Illuminated, Standard	Panel Mount, Front	250 V	No Marking	70 °C	-25 °C	4 A, 200 mA	Button, Flush, Round	IP65 - Dust Tight, Water Resistant	16.2 mm	230 V
RAFI USA 1.15108.2810000	Off-Mom, On-Mom	Solder Lug	DPST-NO/NC	Illuminated, Standard	Panel Mount, Front	250 V	No Marking	70 °C	-25 °C	4 A, 200 mA	Button, Square	IP65 - Dust Tight, Water Resistant	16.2 mm	230 V
RAFI USA 1.15108.1530000
RAFI USA 1.15108.2530000	Off-Mom, On-Mom	Solder Lug	6PST-3NO/3NC	Illuminated, Standard	Panel Mount, Front	250 V	No Marking	70 °C	-25 °C	4 A, 200 mA	Button, Square	IP40	16.2 mm	230 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

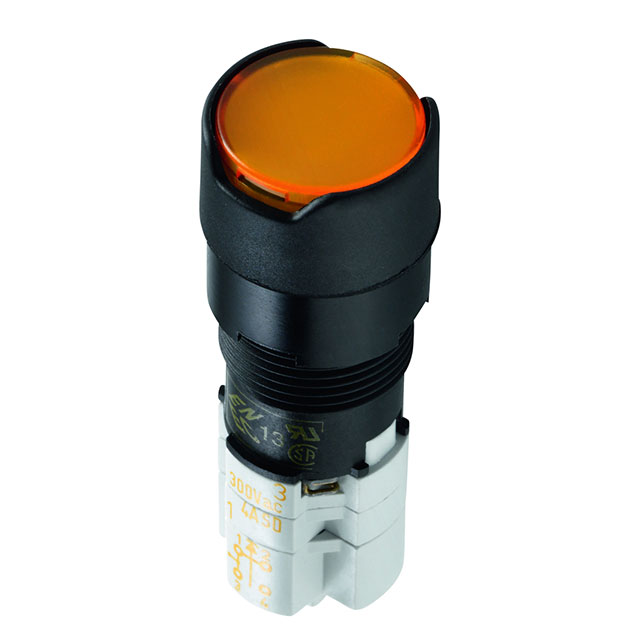

Pushbutton Switch 4PST-2NO/2NC Standard, Illuminated Panel Mount, Front
